|Operating Weight (Ripper Not Included):||23.44t||Blade Type:||Straight Tilt Blade Angle Blade|
|Blade Width:||Straight Tilt Blade 3725×1315 Mm||Dozing Capacity:||Straight Tilt Blade 6.4 M3|
shantui construction machinery,
dozer construction equipment

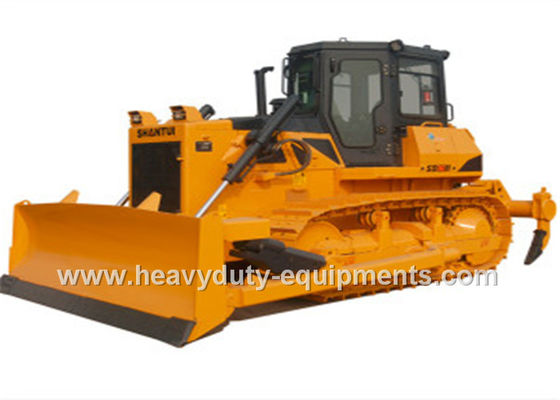

Earth Movers Equipment 23.44 Tons Crawler Bulldozer 560mm Track Shoe Width
|L×W×H (Ripper not included)||5750×3725×3395 mm||Ripping depth of ripper||Single ripper 695mm|
|Operating weight (Ripper not included)||23.44t||Three-shank ripper 666mm|
|Rated power||162/1800kW/rpm||Lifting height of ripper||Single ripper515mm/Three-shank ripper 555mm|
|Gradeability||30°||Number of carriers (each side)||2|
|Blade type||Straight tilt blade Angle blade||Number of track rollers (each side)||6|
|Blade width||Straight tilt blade 3725×1315 mm||Number of track shoes (each side)||38|
|Width of track shoe||560mm|
|Angle blade 4365×1055mm||Track gauge||2000mm|
|Ground length and ground pressure||2730-0.077mm/MPa|
|Dozing capacity||Straight tilt blade 6.4 m3||Pitch||216mm|
|Angle blade 4.7||0–6.5km/h|
|Ma× drop below ground of blade||540 mm||Reverse speed||0–4.3km/h|
|Lift height of blade||1210 mm||0–7.7km/h|
|Ripper type||Single ripper Three-shank ripper||0–13.2km/h|
Based on the SD22, the SD22W rock bulldozer is specially designed for work in rocky environments. The SD22W features advanced performance, high reliability, low fuel consumption and convenient maintenance.
1. The SD22W is equipped with a high-strength, wear-resistant rock type blade and frame, making it adaptable for tough work with gravel, rock and weathered rock.
2. Optional attachments include a high positioning warning lamp, a reverse warning alarm, a camera and an LCD screen, which can all greatly improve safety during operation.
3. Its equipped with a rubbish blade with a large capacity and mud-flaps which can improve working efficiency.
4. The SD22W has central lubrication, central pressure measurement and automatic track tension systems which contribute to convenient and timely observation and maintenance.
