26tons Shantui SD22S swamp bulldozer for swamps working,Straight tilt blade,6.8m3 blade volume

China 26tons Shantui SD22S swamp bulldozer for swamps working,Straight tilt blade,6.8m3 blade volume supplier

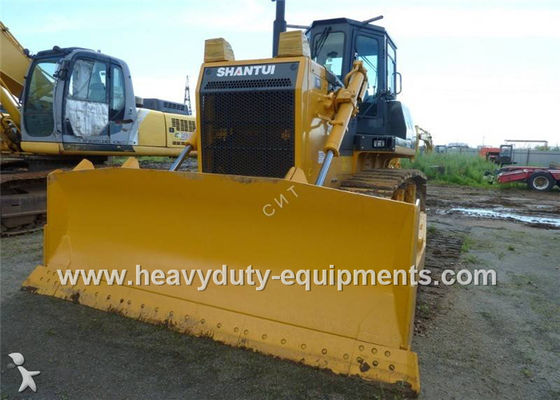

Large Image :  26tons Shantui SD22S swamp bulldozer for swamps working,Straight tilt blade,6.8m3 blade volume

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC/BV
Model Number: SD22S

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30 work days
Supply Ability: 100 units/month
Contact Now
Detailed Product Description
Model: SD22S Engine: Cummins NT855-C280S10
Operating Weight (Ripper Not Included): 25.7t Forward Speed 1: 0–3.6km/h
Forward Speed 2: 0–6.5km/h Forward Speed 3: 0–11.2km/h
High Light:

dozer construction equipment

,

heavy equipment bulldozer

26tons Shantui SD22S swamp bulldozer for swamps working,Straight tilt blade,6.8m3 blade volume



Specification:



ITEM SD22S Engine Cummins NT855-C280S10
L×W×H (Ripper not included) 6060×4365×3435 mm Ripping depth of ripper Single ripper 695mm
Operating weight (Ripper not included) 25.7t Three-shank ripper 666mm
Rated power 162/1800kW/rpm Lifting height of ripper Single ripper515mm/Three-shank ripper 555mm
Gradeability 30° Number of carriers (each side) 2
Blade type Straight tilt blade Number of track rollers (each side) 8
Blade width 4365×1248mm Number of track shoes (each side) 45
Width of track shoe 910mm
Track gauge 2250mm
Ground length and ground pressure 3480-0.041mm/MPa
Dozing capacity 6.8 m3 Pitch 216mm
Forward speed 0–3.6km/h
0–6.5km/h
0–11.2km/h
Ma× drop below ground of blade 550 mm Reverse speed 0–4.3km/h
Lift height of blade 1330 mm 0–7.7km/h
Ripper type - 0–13.2km/h



Application:



Based on the SD22, the SD22S swamp bulldozer is specially designed for work in wetlands.



Advantage:



1.The SD22S features advanced performance, high reliability, low fuel consumption and convenient maintenance, as well as being equipped with a 910mm swamp-type extended track, which reduces ground pressure and improves maneuverability in wet areas. The SD22S easily adapts to earth moving operations in swamps and other wet or muddy environments.

2. Optional attachments include a high positioning warning lamp, a reverse warning alarm, a camera and an LCD screen, which can all greatly improve safety during operation.

3. Its equipped with a rubbish blade with a large capacity and mud-flaps which can improve working efficiency.
