Product Details:
Payment & Shipping Terms:
|
| Model: | SD22S | Engine: | Cummins NT855-C280S10 |
|---|---|---|---|
| Operating Weight (Ripper Not Included): | 25.7t | Reverse Speed 1: | 0–4.3km/h |
| Reverse Speed 2: | 0–7.7km/h | Reverse Speed 3: | 0–13.2km/h |
| High Light: | shantui construction machinery,dozer construction equipment |
||

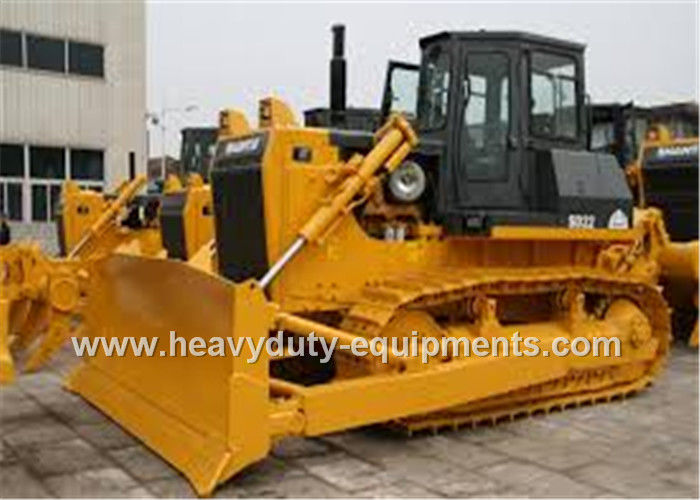

Shantui SD22S swamp bulldozer with 26tons operating weight, 6.8m3 dozing capacity
Specification:
| ITEM | SD22S | Engine | Cummins NT855-C280S10 |
| L×W×H (Ripper not included) | 6060×4365×3435 mm | Ripping depth of ripper | Single ripper 695mm |
| Operating weight (Ripper not included) | 25.7t | Three-shank ripper 666mm | |
| Rated power | 162/1800kW/rpm | Lifting height of ripper | Single ripper515mm/Three-shank ripper 555mm |
| Gradeability | 30° | Number of carriers (each side) | 2 |
| Blade type | Straight tilt blade | Number of track rollers (each side) | 8 |
| Blade width | 4365×1248mm | Number of track shoes (each side) | 45 |
| Width of track shoe | 910mm | ||
| Track gauge | 2250mm | ||
| Ground length and ground pressure | 3480-0.041mm/MPa | ||
| Dozing capacity | 6.8 m3 | Pitch | 216mm |
| Forward speed | 0–3.6km/h | ||
| 0–6.5km/h | |||
| 0–11.2km/h | |||
| Ma× drop below ground of blade | 550 mm | Reverse speed | 0–4.3km/h |
| Lift height of blade | 1330 mm | 0–7.7km/h | |
| Ripper type | - | 0–13.2km/h |
Description:
SD22S wetland bulldozer is designed and developed especially in response to the characteristics of wetland working conditions and can work normally in the soft and muddy soil conditions inaccessible by conventional machine models.
Advantage:
Based on the SD22, the SD22S swamp bulldozer is specially designed for work in wetlands. The SD22S features advanced performance, high reliability, low fuel consumption and convenient maintenance, as well as being equipped with a 910mm swamp-type extended track, which reduces ground pressure and improves maneuverability in wet areas. The SD22S easily adapts to earth moving operations in swamps and other wet or muddy environments.
