|Model:||XG4221L||Engine Model:||Cummins NT855-C280|
|Operating Weight:||23450kg||Basic Overall Dimensions:||5510x3725x3325 Mm|
|Blade Wide:||3725mm||Max Cutting Depth:||540 Mm|
shantui construction machinery,
heavy equipment bulldozer

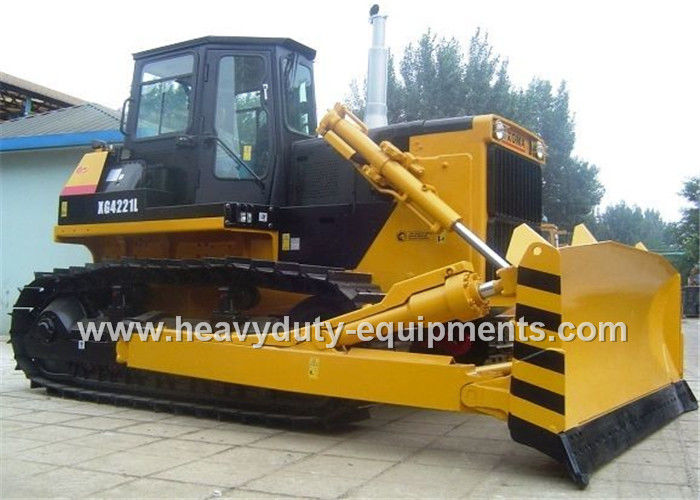

XGMA XG4221L bulldozer with ripper , ROPS , 4.8 to 7.5m³ blade capacity
|Basic overall dimensions (LxWxH)||
|Max cutting depth||540 mm||Cutting angle||55°|
|Min ground clearance||405mm||Min turning radius||3300 mm|
|Caterpillar track center distance||2000mm||Grade ability||30°|
|Caterpillar track center distance||2000mm||Caterpillar pitch||216mm|
|Crawler track type||560mm||Operating weight||23450kg|
|Single blade capacity||5.6m³||Ripper||Parallelogram adjustable and removable|
|Max. Lifting height||555mm||Ripper mass||2900kg|
|Overall dimension with ripper and ROPS(LxWxH)||6793x3725x3400 mm|
Industry-leading driving force, efficient work, Sensitive and reliable manipulation, easy to maintain.
1. The crawler bulldozer installed Cummins diesel engines, turbocharged, equipped with PT pump fuel supply system, having the advantages of fuel economy, low maintenance, and large torque reservation.
2. The diesel engine used on the crawler bulldozer delivers exceptional performance for matching with the hydraulic torque converter, has wide rotation speed range of high efficiency area, and can obtain the best output power in collaboration with the power shift transmission.
3. The crawler bulldozer operating device adopts hydraulic driving mode, being simple, flexible and reliable.
4. The control system of the bull dozers use hydraulic assistant mode for easily operating.
5. The travel system adopts balance beam suspension mode, which can works well in rugged surfaces.
6. Concentrated pressure measurement technology is employed to facilitate the malfunction inspection, repair and elimination. With high general utilization of wear parts, the maintenance performance of the bulldozer has been greatly improved.
7. Crawler bulldozer is featuring sound insulation, heat insulation and shock absorption, the spacious cab with adjustable seat provides excellent visibility and a comfortable work environment.
8. Optional: Ripper, ROPS, A/C give you choice.
Earth moving projects, bulldozing, digging, landfill, and other bulk operations.
