Product Details:
Payment & Shipping Terms:
|
| Model: | XG4220S | Engine Model: | Cummins NT855-C280 |
|---|---|---|---|
| Operating Weight: | 25700kg | Blade Width * Height: | 3800x1343mm |
| Max Lifting: | 1210mm | Engine Oil Capacity: | 45L |
| High Light: | shantui construction machinery,dozer construction equipment |
||

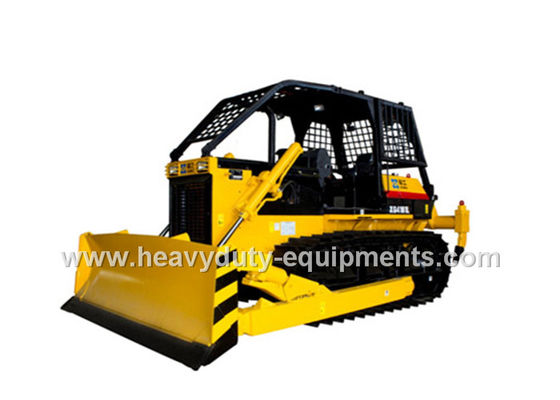

XGMA XG4220F bulldozer 4.8-7.5m³ blade capacity with type blade single ripper
Spicification:
| Model | XG4220F | Engine model |
Cummins NT855-C280S10 |
| Blade type | “U” type blade | Blade capacity | 7.5 m³ |
| Track gauge | 2000 mm | Track type | Sealed, assembled single-grouser |
| Operating weight | 24500kg | Main ground Clearance | 405 mm |
| Min turning radius | 3.3m | Grade ability | 30° |
| Blade width * height | 3800x1343mm | Max Depth | 540 mm |
| Max lifting | 1210mm | Working cylinder type | Double-acting piston type |
| Width of Track shoes | 560mm |
Flywheel horse power |
180hp |
| Engine oil capacity | 45L | Hydraulic tank capacity | 108L |
|
3-shank ripper Max.lift |
555mm | Max.digging depth | 666mm |
Description:
Industry-leading driving force, efficient work, Sensitive and reliable manipulation, easy to maintain.
Advantages:
1. Awarded the ISO9001:2000 system certificate
2. Engine model: CUMMINS NT855-C280S10
3. Flywheel horsepower: 220 hp (162 kw)/1800rpm
4. Operating weight (straight-tilt dozer): 23400kg
5. Manufactured using KOMATSU D85A-18 bulldozer technology, XGMA bulldozer features high performance, great efficiency, safe and reliable operation
6. The bulldozer is widely used in forestry logging applications
7. Optional attachments: angle blade, u-blade, 3-shank ripper, winch, single ripper, ROPS cab, canopy.
Application:
Earth moving projects, bulldozing, digging, landfill, and other bulk operations.
