|Model:||CAT326D2L||Engine:||Cat® C7.1 ACERT™|
|Bucket Capacity:||0.6 SLR Bucket||Swing Speed:||9.6rpm|
|Boom Cylinder – Stroke:||1305.0 Mm||Engine Rated Power:||145 Kw|
hydraulic system excavator,
crawler hydraulic excavator

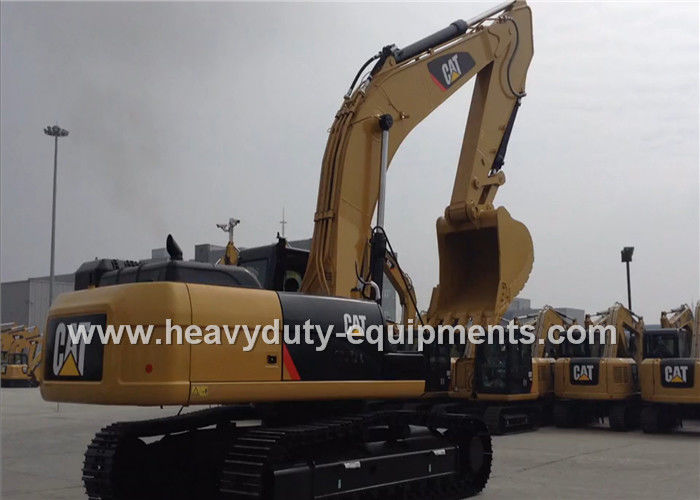

Caterpillar CAT326D2L hydraulic excavator equipped with standard Cab
|Engine||Cat® C7.1 ACERT™||Working device||Standard arm|
|Overall operating weight||28475.0 kg||Bucket capacity||0.6 SLR Bucket|
|Max. excavation force||227 KN||Swing speed||9.6rpm|
|Traveling speed||5.8 km/h||Pilot System – Maximum Flow||23.4 L/min|
|Boom Cylinder – Stroke||1305.0 mm||Stick Cylinder – Stroke||1660.0 mm|
|CB1 Bucket Cylinder – Stroke||1156.0 mm||Engine rated power||145 kw|
|Maximum Pressure –Equipment||35.0 MPa||Swing System – Maximum Flow||233.0 L/min|
The mechanical suspension seat provide a variety of adjustments to accommodate a wide range of operators. All seats include a reclining back, upper and lower seat slide adjustments, and height and tilt adjustments.
The cab shell is attached to the frame with viscous rubber cab mounts which dampen vibrations and sound levels while enhancing operator comfort. Thick steel tubing along the bottom perimeter of the cab improves resistance to fatigue and vibration.
1. The new monitor on the 326D2 L features a 40 percent larger screen with four times increased resolution display.
2. The LCD monitor is equipped with a warning lamp and buzzer for critical engine oil pressure, coolant temperature and oil temperature. Programmable in up to 42 languages to meet today’s diverse workforce, the monitor clearly displays critical information needed to operate efficiently and effectively.
3. Filters and fluid change intervals are available in the main menu which also projects the image from the optional rear view camera, further enhancing your job site safety and productivity.
4. Operators can adjust the right and left joysticks for individual preferences, helping them become more comfortable, more productive, and more alert. Low‑effort, pilot-operated joystick controls are designed to match your natural wrist and arm position for maximum comfort and minimum fatigue.
