6x4 driving sinotruk howo 371hp 70 tons mining dump truck for mining work

China 6x4 driving sinotruk howo 371hp 70 tons mining dump truck  for mining work supplier
6x4 driving sinotruk howo 371hp 70 tons mining dump truck  for mining work supplier 6x4 driving sinotruk howo 371hp 70 tons mining dump truck  for mining work supplier 6x4 driving sinotruk howo 371hp 70 tons mining dump truck  for mining work supplier 6x4 driving sinotruk howo 371hp 70 tons mining dump truck  for mining work supplier

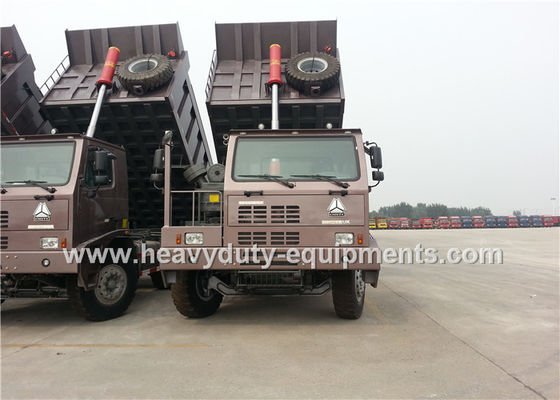

Large Image :  6x4 driving sinotruk howo 371hp 70 tons mining dump truck for mining work

Product Details:

Place of Origin: China
Brand Name: SINOTRUK HOWO
Certification: ISO/CCC
Model Number: howo603

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $ 75000-$ 80000
Packaging Details: Nude, but with wax sprayed.
Delivery Time: 25 working days after received payment
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1,000 units per month
Contact Now
Detailed Product Description
Product Name: Dump Truck Application: Transportation
Horse Power: 371 HP Drive Type: 6X4
Cabin: Standard Cab Cargo Body(CBM): 18.68
High Light:

commercial dump trucks

,

sinotruk dump truck

6x4 driving sinotruk howo 371hp 70 tons mining dump truck for mining work



Specification:



Mass
Parameters

Curb Weight (kg)

29300

Maximum Permissible Total Mass (kg)

70000

Towable Mass of Trailer (kg)



Size
Parameters

Overall Dimensions (mm)

Length

8700, 8400

Width

3300

Height

4340

Distance between Axles (mm)

3800+1500,
3600+1500

Minimum Ground Clearance (mm)

340

Performance
Parameters

Max. Driving Speed (km/h)

50, 60

Economic Speed (km/h)

35

Max. Gradeability (%)

42

Minimum Turning Diameter (m)

19

Recommended
Configuration

Engine

Model

WD615.96C

Net Power (kW)/
Rotational Speed (r/min)

279kW/2000rpm

Max. Torque (Nm)/
Rotational Speed (r/min)

1590/1200~1500

Gearbox

HW19710,
HW19710A

Clutch (mm)

430A

Rear Axle

Model

AC26

Velocity Ratio

10.47/8.51

Oil Tank (L)

500

Frame Section (mm)

380×120×10

Suspension (front/rear spring)

18×12/25×15

Tire

14.00-25,
14.00R25



Description:

The HOWO 70 mining dump truck, Mine Overlord, is developed by Sinotruk according to the features of the working conditions in the mines. It is suitable for the short-distance transport business in various wharves, steel mills, open pits, hydropower sites, and other places with harsh environment.

The Mine Overlord adopts a cab with high strength framework covered with protective materials. The cab is set with one side door. A high-power diesel engine is used. The heating device adopted makes it easier for the vehicle to start and provides heat to the cab in cold days. The cost-effective chassis brings customers with good economic efficiency and social effectiveness.



Features
1. The pre-filtration plus oil bath plus air filtration three-level air filter of the engine intake system is able to filter the dust effectively. This prevents the early wear of the engine and extends its service life.
2. The reinforced front and rear leaf springs enable the chassis to deal with various harsh working conditions.
3. The standard configuration includes a 200L cooling water tank and water spraying device which cool the braking system more quickly and conveniently, improving braking safety.
4. The HOWO 70 mining dump truck is equipped with the new front axle assembly which is independently developed by Sinotruk. It employs integrally cast I-beams, Φ500×210 reinforced type brake, and other assemblies or parts that are suitable for mine vehicles.
5. The AC26 drive axle is used as the rear axle. The main reducer is designed more reasonably. The reinforced type cast axle housing and drum brake make the carrying capacity and braking ability of our product in the leading domestic level.
6. The 10.0/2-25 wheel assembly is adopted. The 14.00-25-36PR tire is among the standard configuration, but the 14.00R25-36PR tire is optional. These tires with high load carrying capacity and wear resistance are specially tailored for Mine Overlord.
