Product Details:
Payment & Shipping Terms:
|
| Product Name: | Dump Truck | Application: | Transportation |
|---|---|---|---|
| Horse Power: | 371 Hp | Drive Type: | 6X4 |
| Cabin: | HW7D Cab | Cargo Body(CBM): | 25.09 |
| High Light: | commercial dump trucks,sinotruk dump truck |
||

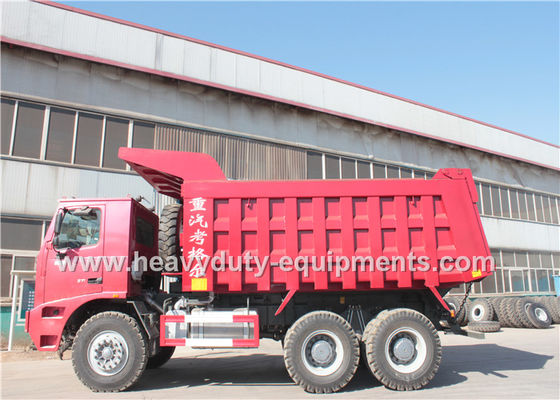

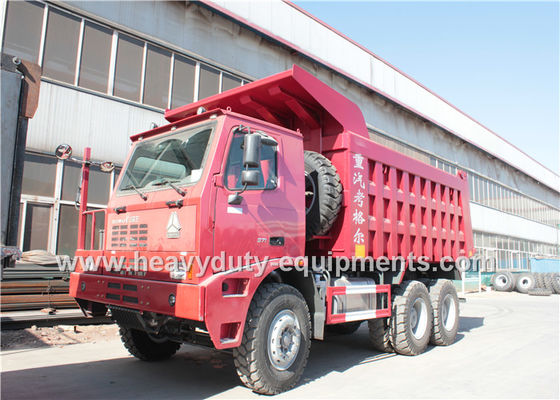

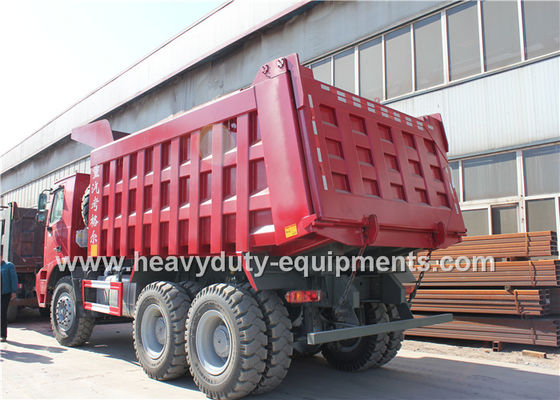

6x4 mining dump truck with HW7D cab and reinforce frame ISO / CCC Approved
Specifications:
|
Sinotruk Howo Mining King Tipper Truck |
|
|
Chassis Model |
ZZ5707S3640AJ (Left Hand Driving Type) |
|
Production Year |
new truck. |
|
Cabin |
HW7D cab, without sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn,air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. |
|
Engine |
Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Engine model: WD615.47, Euro 2, 371 HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L |
|
Transmission |
HW19710, 10F & 2R, with PTO Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
|
Steering |
ZF power steering, modol ZF8098, hydraulic steering with power assitance |
|
Front Axle |
HF12, 1x12000 KGS Steering with doubleT-cross section beam |
|
Rear Axle |
AC26, 2x26000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. Ratio:4.42 |
|
Propeller Shaft |
Double universal joint propeller shaft with gear-shaped coupling flange |
|
Chassis |
Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members, strengthened type. Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
|
Brake |
Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
|
Electrics |
Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
|
Tyres |
14.00-25, 36PR |
|
Fuel Tank |
400L |
|
Cargo Body |
5600*2800*1600 mm, 25.09 CBM, Floor 16 mm Side 12 mm, front lifting |
|
Overall Dimension |
9000*3300*4200 mm |
Description:
The HOWO 70 mining dump truck, Mine Overlord, is developed by Sinotruk according to the features of the working conditions in the mines. It is suitable for the short-distance transport business in various wharves, steel mills, open pits, hydropower sites, and other places with harsh environment.
The Mine Overlord adopts a cab with high strength framework covered with protective materials. The cab is set with one side door. A high-power diesel engine is used. The heating device adopted makes it easier for the vehicle to start and provides heat to the cab in cold days. The cost-effective chassis brings customers with good economic efficiency and social effectiveness.
Applications:
It is suitable for in normal roads and tough roads, to transport and unload transport, stone, ore, and others loose materials.
Competitive Advantage
1. we can do the designing according to the customers'requirement
2. we can offer you the best quality & reasionalble price
3. we can offer your a perfect after-sale service
4. we are having strong professinal design team
5. Fast delivery. small order is welcomed.
