Product Details:
Payment & Shipping Terms:
|
Product Name: | Dump Truck | Application: | Transportation |
---|---|---|---|
Horse Power: | 266-420 Hp | Drive Type: | 6X4 |
Cabin: | HW76 | Cargo Body(CBM): | 25.06 |
High Light: | construction dump trucks,sinotruk dump truck |

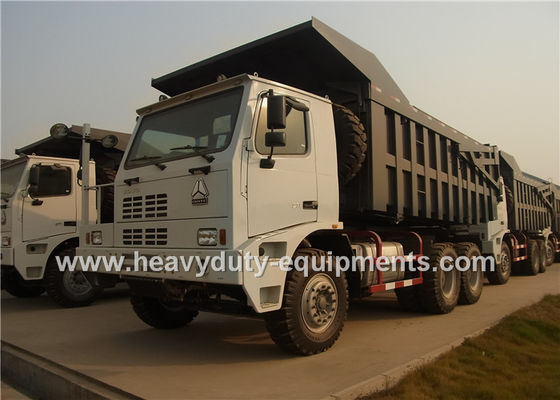

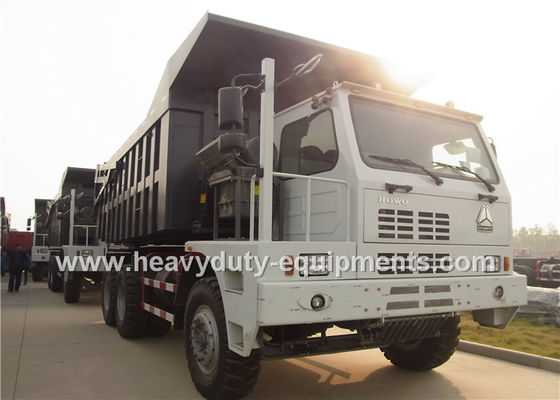

Sinotruk HOWO 6x4 strong mine dump truck in Africa and South America markets
Specifications:
Sinotruk Howo Mining King Tipper Truck | |
Chassis Model | ZZ5707S3840AJ (Left Hand Driving Type) |
Production Year | 2016, new truck. |
Cabin | HW76cab, with one sleeper and two seats, 2-arm windscreen wiper system with three |
Engine | Make: SINOTRUK |
Transmission | HW19710, 10F & 2R, with PTO |
Steering | ZF power steering, modol ZF8118, hydraulic steering with power assitance |
Front Axle | HF12, 1x12000 KGS |
Rear Axle | AC26, 2x26000 KGS |
Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe |
Brake | Service brake: dual circuit compressed air brake |
Electrics | Operating voltage: 24 V, negative grounded |
Tyres | 14.00-25, 36PR |
Fuel Tank | 400L |

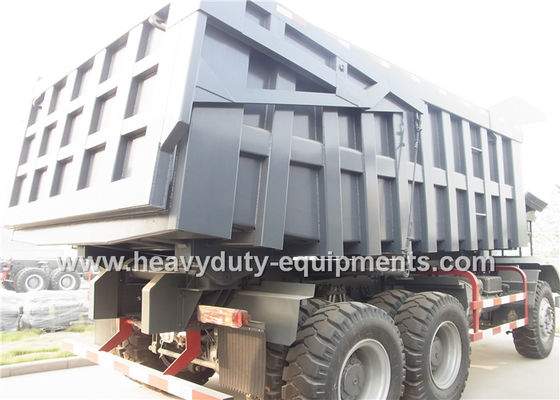

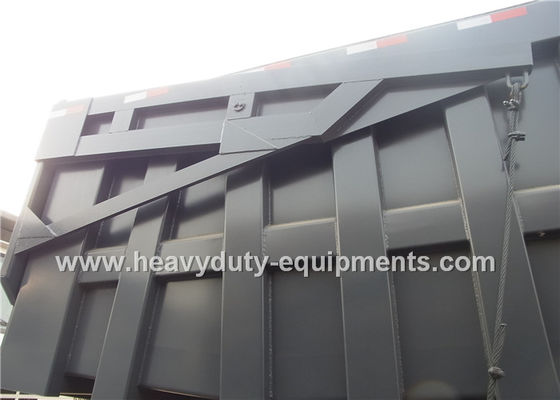

Cargo Body | 5800*2800*1700 mm, 27.6 CBM, Floor 16 mm Side 12 mm, front lifting |
Overall Dimension | 9000*3300*4200 mm |
HF12 Front Axle Assembly
The HF12 fist-shaped front axle is a new assembly that is independently developed by Sinotruk for mine vehicles. It uses the integrally cast I-beam, Φ500×210 reinforced type brake, and other parts which are suitable for mine vehicles.
The first batch of sample of HF12 front axle achieves the desired objectives in the bench test. Compared with the HF9 front axle that is currently used by HOWO dump trucks, the HF12 front axle has higher carrying capacity and better braking performance. Its carrying capacity is increased by at least 1/3. Therefore, the HF12 front axle is more suitable for vehicles working in the mines with harsh working conditions.
AC26 Drive Axle
The AC26 integrally cast double reduction drive axle with wheel side reducer is independently developed by our company and is dedicated for mine vehicles. With reasonable design and advanced technology, the axle has high safety, strong carrying capacity, high strength, and high stiffness. It is able to adapt to the harsh working conditions in the mines.
