Product Details:
Payment & Shipping Terms:
|
| Product Name: | Dump Truck | Application: | Transportation |
|---|---|---|---|
| Horse Power: | 371 Hp | Drive Type: | 6X4 |
| Cabin: | HW76/HW79 | Cargo Body(CBM): | 32.36 |
| High Light: | construction dump trucks,sinotruk dump truck |
||

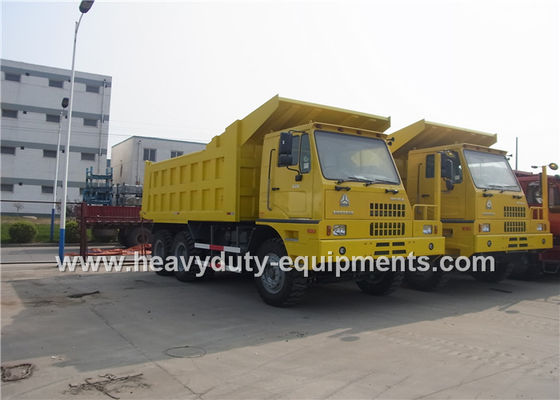

Sinotruk HOWO 70Tons mining dump truck / mining tipper truck for base Rock
Specifications:
Vehicle Model | ZZ5707S3840AJ | |
Cab | Type | HOWO wide type |
| Model | Big plane one sided strength mining dump truck |
Engine | Model | WD615.47 |
| Maximum output power | 273/370 |
| Maximum torque | 1500/1100-1600 |
| Displacement (L) | 9.726 |
| Emission standard | Euro 2 |
| Style | 6-cylinder 2-stroke in line with turbo |
Clutch | 430 Diaphragm-spring clutch | |
Transmission | HW19710 HOWO 10 shifts gearbox | |
Driving Axle | AC26 Double reduction pressed axle housing with wheel reduction | |
Front Axle | HF12 Mining area whole cast steel | |
Suspension | Front/rear leaf spring Integral balance suspension | |
Steering | ZF8118 | |
Braking system | Service brake: dual circuit compressed air brake. | |
Tires | 14.00-25 tyre | |
Fuel Tanker | D type 500L | |
Kerb weight | 23000kg | |
Gross weight | 75000kg | |
Rated loading capacity | 52460kg | |
Actual loading capacity | 70000kg | |
Overall dimension | 8500x3300x3670mm | |
Dump box dimension | 5800x3100x1800mm | |
Wheelbase | 3800+1500mm | |
Front/Rear | 1500/1000mm | |
Approach Angle ° | 32/40 | |
Max.speed | 50km/h | |
Min.ground clearance | 340mm | |
Min.turn radius | 22m | |
Max. grade ability | 42% | |
Max.inclination angle | 51 ° | |
Box lifting time | 25s | |
Max.grade ability | 42% | |
Description:
The HOWO 70 mining dump truck adopts a cab with high strength framework covered with protective materials. The cab is opened from one side. It can be turned forwards by 50°. The front and rear lighting work lights facilitate night operations. The cab interior is comfortable. The good sealing property ensures comfortable driving environment even when the vehicle works under harsh conditions.
Usage of Patents
Patent Name | Type | Patent Number | |
1 | One-side-door cab which can be flipped | New type | ZL200820233338.1 |
2 | Cab for mine heavy-duty vehicle | New type | 201020300571.4 |
3 | Radiator cover for heavy mining vehicles | New type | 201020101426.3 |
4 | Right side platform assembly for heavy mining vehicles | New type | 201020101325.6 |
5 | Instrument sets of heavy duty truck cab | Appearance | 201030140919.3 |
6 | New suspension system | New type | ZL200920017240.7 |
7 | New front leaf spring rear bracket | New type | ZL200820026501.7 |
8 | Heavy duty truck cab rear-view mirror | Appearance | 200830354794.7 |
9 | Brake cooling device | New type | ZL200820016846.4 |
10 | Transmission | New type | ZL200720027568.8 |
11 | Pull-type diaphragm spring clutch assembly for heavy-duty vehicle | New type | 200920019097.5 |
12 | Cross beam assembly | Appearance | 200930261302.4 |
13 | New sliding ball joint assembly | New type | 200820226455.5 |
14 | Dump truck exhaust | New type | 200920239701.5 |
15 | Dump truck frame assembly | New type | 200920281955.3 |
