big loading Mining dump truck 371 horsepower Left hand steering Vehicle from sinotruk

China big loading  Mining dump truck 371 horsepower Left hand steering Vehicle from sinotruk supplier
big loading  Mining dump truck 371 horsepower Left hand steering Vehicle from sinotruk supplier big loading  Mining dump truck 371 horsepower Left hand steering Vehicle from sinotruk supplier big loading  Mining dump truck 371 horsepower Left hand steering Vehicle from sinotruk supplier big loading  Mining dump truck 371 horsepower Left hand steering Vehicle from sinotruk supplier

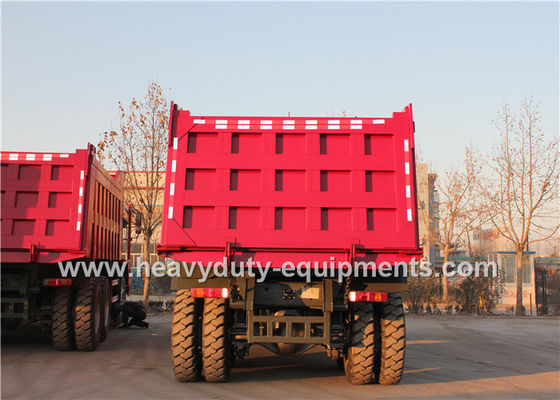

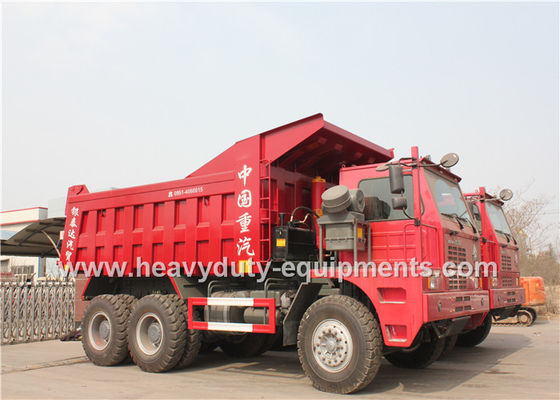

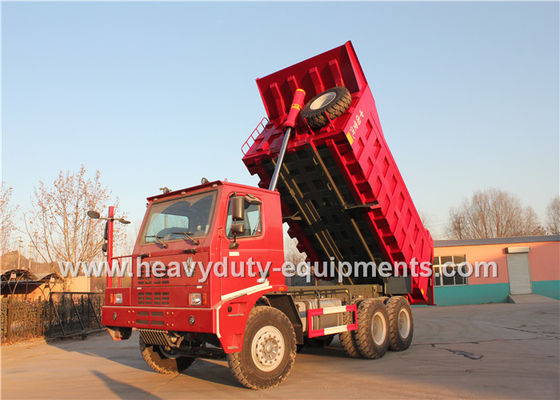

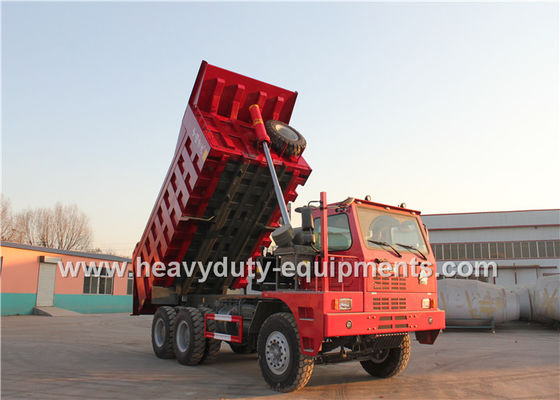

Large Image :  big loading Mining dump truck 371 horsepower Left hand steering Vehicle from sinotruk

Product Details:

Place of Origin: China
Brand Name: SINOTRUK HOWO
Certification: ISO/CCC
Model Number: ZZ5707S3840AJ

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $ 55000-$ 65000
Packaging Details: Nude, but with wax sprayed.
Delivery Time: 25 working days after received payment
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1,000 units per month
Detailed Product Description
Product Name: Dump Truck Application: Transportation
Horse Power: 371hp Drive Type: 6X4
Cabin: HOVA Cab

big loading Mining dump truck 371 horsepower Left hand steering Vehicle from sinotruk



Specifications:



MODEL QDZ3703ZH38 QDZ3703ZH36
Chassis model ZZ5707S3840AJ ZZ5707S3640AJ
Wheel base(mm) 3800+1500 3600+1500
Body dimension(mm) 5800×3100×1800 5500×3100×1800
Overall dimension(mm) 8600×3300×4100 8400×3300×4100
Driving type 6×4
Engine model WD615.47  SINOTRUK  Euro II
Cab HW7D
Transimission HW19710
Brake 430mm diaphragm spring clutch
Tyre 14.00-25
Front axle HF12
Driving axles AC26
Steering ZF8098
Gross vehicle weight(Kg) 75000 73000
Rated loading capacity(Kg) 52000 50000
Dead weight(Kg) 23000 23000
Rated engine power(Kw/r/min) 273/2200
Displacement(ml) 9726
Maximum torque(Nm/r/min) 1500/1100-1600
Maximum driving speed(Km/h) 50
Maximum turning radius(m) 22
Tipping type Front tipping
Tipping angle of body(°) 50





Applications:

The HOWO 50 mining dump truck inherits the design concept and style of the HOWO 70 mine tipper. It is newly developed according to the characteristics of the working conditions of the mines. Compared with the HOWO 70 product, the HOWO 50 product has smaller volume and its maximum load is slightly reduced. As a non-road vehicle, it is suitable for the short-distance transshipment business in various open pits, steel mills, docks, hydropower sites, and other places where environment is harsh.



Competitive Advantage

1, High technology make the truck much more perfect than other brand trucks!

2, Longer lifespan and low lost which can save you money and make you earn more!

3, High reliability can achieve run effeciency and much more loading!

4, High safety all around make your drive safe!

5, Many measures are taken to make sure the driver can drive easier and much more comfortable!

6, Good reputation both in China and other developing countries!



big loading  Mining dump truck 371 horsepower Left hand steering Vehicle from sinotruk
