Product Details:
Payment & Shipping Terms:
|
| Product Name: | Mining Dump Truck | Application: | Transportation |
|---|---|---|---|
| Horse Power: | 276kW | Drive Type: | 6x4 |
| Gross Weight: | 76 Tons | Cargo Body(CBM): | 32 |
| High Light: | construction dump trucks,commercial dump trucks |
||

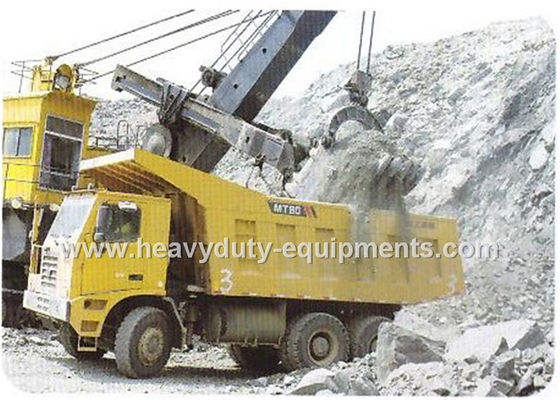

Rated load 50 tons Off road Mining Dump Truck Tipper drive 6x4 with 32 m3 body cargo Volume
Specifications:
| Model | MT76 | MT76C |
|---|---|---|
| Curb Weight (kg) | 26000 | |
| Gross Weight (kg) | 76000 | |
| Payload (kg) | 50000 | |
| Body Volume (m³) | 32(Without tailgate) | |
| Truck Dimension (L*W*H) (mm) | 8670×3390×3885 | |
| Wheelbase (mm) | 3800+1500 | |
| Drive Mode | 6×4 | |
| Min. Curving Radius (m) | ≤11 | |
| Approach/Departure Angle | 30/40° | |
| Max. Speed (km/h) | 55 | 60 |
| Max. Gradeability (%) | 37 | 35 |
| Engine Model | WD12.375 | WD12.420 |
| Engine Power (kW) | 276 | 309 |
| Transmission | 10JSD220(A) | |
| Tire | 14.00-25 | |
| Axle Bearing Capacity (t) | 16+35+35 | |
Description:
1. The reinforced riveted frame with large cross section is fabricated from high strength steel plates, ensuring large loading capacity and reliability in harsh working conditions.
2. Three rubber shock blocks of different rigidity (with different intervals between them and the leaf spring) are applied in the front suspension, shock resistance of the leaf spring greatly improve.
3. Box-section stiffeners wedged to form a frame structure, and high strength steel plates applied, durability greatly enhanced.
4. The MT76 can be refitted for coal transportation in the port by lengthening the chassis.
Competitive Advantage
1, The price is competitive; we are the direct channel to supply the mining dump truck
2, Powerful engine and strong frame, which can suit to all kinds of road conditions, especially for the tough roads
3. Professional Sales Team of trucks. Our target is not selling trucks; we help customers choose the best suitable trucks as per customer’s situation.
4. Professional team for spare parts and aftersales services.
5. Technique support and training.
6, Customization service, as per your request, we will customize our production for you
