Rated load 55 tons Off road Mining Dump Truck Tipper drive 6x4 with 35 m3 body cargo Volume

China Rated load 55 tons Off road Mining Dump Truck Tipper  drive 6x4 with 35 m3 body cargo Volume supplier

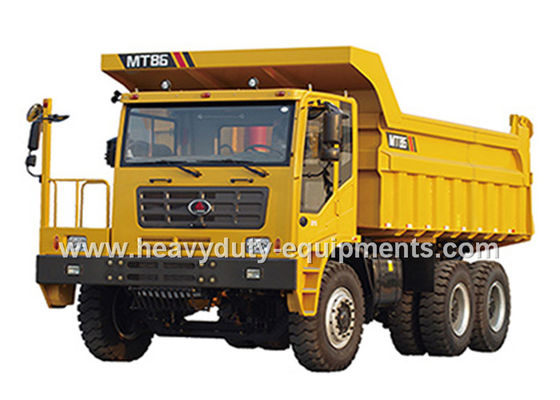

Large Image :  Rated load 55 tons Off road Mining Dump Truck Tipper drive 6x4 with 35 m3 body cargo Volume

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC
Model Number: MT80

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $ 110000-$ 120000
Packaging Details: Nude, but with wax sprayed.
Delivery Time: 25 working days after received payment
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000 units per month
Contact Now
Detailed Product Description
Product Name: Mining Dump Truck Application: Transportation
Horse Power: 276kW Drive Type: 6x4
Gross Weight: 83 Tons Cargo Body(CBM): 35
High Light:

construction dump trucks

,

commercial dump trucks

Rated load 55 tons Off road Mining Dump Truck Tipper drive 6x4 with 35 m3 body cargo Volume



Specifications:



 Model MT80
Curb Weight (kg) 28000
Gross Weight (kg) 83000
Payload (kg) 55000
Body Volume (m³) 30
Truck Dimension (L*W*H) (mm) 8670×3390×3885
Wheelbase (mm) 3800+1500
Drive Mode 6×4
Min. Curving Radius (m) ≤11
Approach/Departure Angle 30/40°
Max. Speed (km/h) 55
Max. Gradeability  (%) 33
Engine Model WD12.375
Engine Power (kW) 276
Transmission 10JSD200(A)
Tire 14.00-25
Axle Bearing Capacity (t) 19+35+35

Description:

1. All standard components are in high strength and assembled in construction machinery standard, making whole machine more reliable.
2. The strengthened steel casting balance shaft and rubber bearings making the balance shaft assembly most reliable in the industry.
3. High strength pushing rods with metallic joint bearing provide better abrasion resistance performance and higher reliability.
4. Oil temperature drops by 50% by converging Hoisting flow and steering flow, and failure rates of the hydraulic system decreases significantly as a result.
5. Main components in the braking system are strengthened to improves the reliability of the braking system.



Competitive Advantage

1, The price is competitive; we are the direct channel to supply the mining dump truck

2, Powerful engine and strong frame, which can suit to all kinds of road conditions, especially for the tough roads

3. Professional Sales Team of trucks. Our target is not selling trucks; we help customers choose the best suitable trucks as per customer’s situation.
4. Professional team for spare parts and aftersales services.

5. Technique support and training.

6, Customization service, as per your request, we will customize our production for you



Rated load 55 tons Off road Mining Dump Truck Tipper  drive 6x4 with 35 m3 body cargo Volume
