HBXG SD7 bulldozer with tilt dozer of 8.4 dozing capacity and 23800kg operating weight

China HBXG SD7 bulldozer with tilt dozer of 8.4 dozing capacity and 23800kg operating weight supplier
HBXG SD7 bulldozer with tilt dozer of 8.4 dozing capacity and 23800kg operating weight supplier HBXG SD7 bulldozer with tilt dozer of 8.4 dozing capacity and 23800kg operating weight supplier HBXG SD7 bulldozer with tilt dozer of 8.4 dozing capacity and 23800kg operating weight supplier

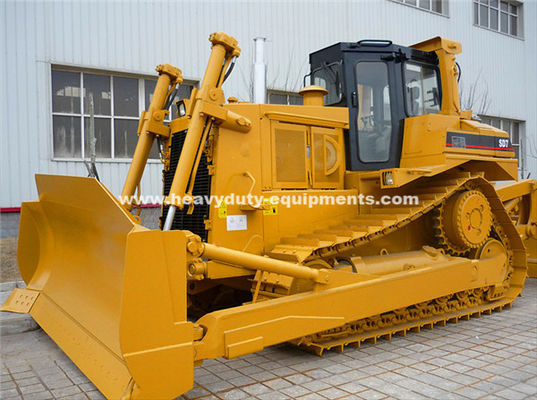

Large Image :  HBXG SD7 bulldozer with tilt dozer of 8.4 dozing capacity and 23800kg operating weight

Product Details:

Place of Origin: China
Brand Name: HBXG
Certification: ISO/CCC/BV
Model Number: SD7

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30 work days
Supply Ability: 100 units/month
Contact Now
Detailed Product Description
Model: SD7 Engine: Cummins
Operating Weight (Ripper Not Included): 23800 Kg Dozer: Tilt
Track Gauge: 1980 Mm Min.ground Clearance: 404 Mm
High Light:

dozer construction equipment

,

heavy equipment bulldozer

HBXG SD7 bulldozer with tilt dozer of 8.4 dozing capacity and 23800kg operating weight



Specifications
Dozer Tilt
Operation weight 23800 kg
Ground pressure 71.9 kpa
Track gauge 1980 mm
Min.ground clearance 404 mm
Gradient 30°/25°
Dozing capacity 8.4 m³
Blade width 3500 mm
Max.digging depth 498 mm
Overall dimensions 5677x3500x3402 mm
Engine
Type Cummins NT855-C280S10
Rated revolution 2100 rpm
Flywheel power 169 kw
Max.torque 1097/1500 N.m/rpm
Rated fuel consumption ≤235 g/kw.h
Undercarriage system
Type

The track is triangle shape

The sprocket is elevated

Number of track rollers 7 (each side)
Pitch 216 mm
Width of shoe 560 mm
Gear 1st 2nd 3rd
Forward km/h 0-3.9 0-6.5 0-10.9
Backward km/h 0-4.8 0-8.2 0-13.2
Implement hydraulic system
Max.system pressure 18.6 mpa
Pump type High perssure gears pump
System output 194 L/min
Driving system
Torque converter Torque conver is power separating hydraulic - mechanic type
Transmission Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted.
Steering clutch The steering clutch is hydrauic pressed, non-constant engaged clutch.
Steering brake The braking clutch is hydraulic pressed by spring, separated hydraulic, constant meshed type.
Final drive The final drive is two-stage planetary redution gear mechanism, splash lubrication.



Description:

SD7 bulldozer is 230 horsepower track-type dozer with elevated sprocket, power shift drive, semi-rigid suspended and hydraulic controls.



Applications:

It is an ideal machine used in communication, desert, oil field, power, mining etc large earth moving program.



Competitive advantage:

1. SD7-230 horse power, elevated sprocket bulldozer integrate with modular design is easy to repair&maintenance.

2. It relieves oil with difference pressure, the hydraulic system performs protecting environment and save energy with high working efficiency.

3. Safetly and comfortable operation condition, electric monitoring and ROPS cabin with reliable entire quality, excellent services is your wise choosing.

4. It can be equipped with straight tilting blade, angle blade, coal pushing blade, U shape blade; single shank ripper, three shanks ripper, ROP, FOPS, forest defense cabin etc.



HBXG SD7 bulldozer with tilt dozer of 8.4 dozing capacity and 23800kg operating weight
