Product Details:
Payment & Shipping Terms:
|
| Operating Weight(kg): | 48880 | Ground Pressure(kpa): | 102 |
|---|---|---|---|
| Dozing Capacity M3: | 13.5 | Engine Type: | Cummins |
| Overall Dimension: | 8478*4314*3970 | Min.Ground Clearance (mm): | 517 |
| High Light: | dozer construction equipment,heavy equipment bulldozer |
||

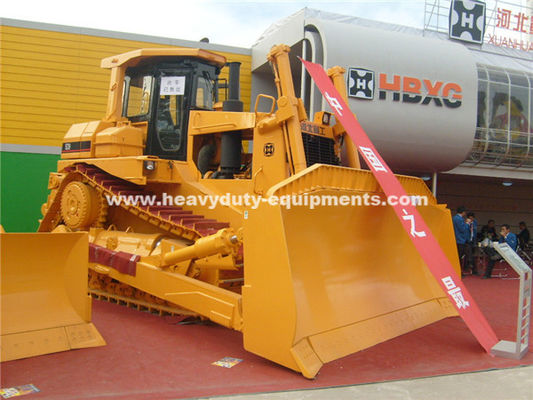

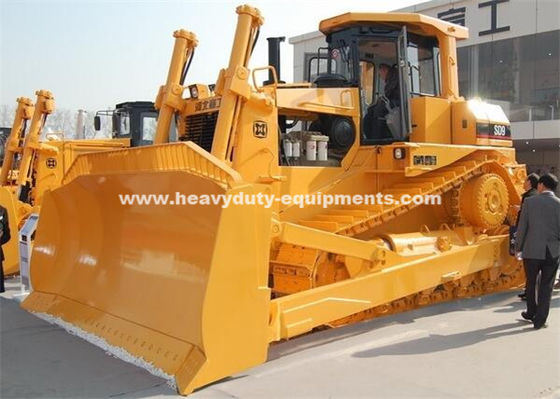

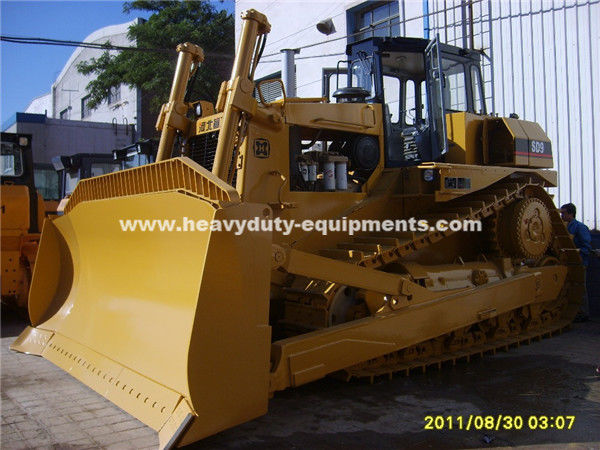

HBXG SD9 Crawler Bullzoder Equipped with Cummins Engine and 49 Tons Operating Weight
SPECIFICATION:
| Dozer | Tilt | Undercarriage system | ||
| Operating Weight(kg) with riper | 44580/48880 | Type | ||
| Ground pressure(kpa) | 102 | The track is triangle shape | ||
| Track gauge (mm) | 2250 | The sprocket is elevated elastic suspended | ||
| Gradient | 30/25 | |||
| Min.Ground clearance (mm) | 517 | N of track rollers | 8 for each side | |
| Dozing capacity m3 | 13.5 | Pitch (mm) | 240 | |
| Blade width (mm) | 4314 | Width of shoe (mm) | 610 | |
| Max digging depth (mm) | 614 | Gears | Forward | |
| Overall dimension | 8478*4314*3970 | Backward | ||
| Engine Type | Cummins | Implement hydraulic system | ||
| Rated reverlation | 1800 | Max.system pressure | 18.3 Mpa | |
| Engine power (kw) | 316/430 | Pump type | Double vane | |
| Torque storage coefficient | 18% | System output (L/min) | 358 | |
| Driving system | ||||
| Torque converter | Torque converter is power separating hydraulic mechanic type | |||
| Transmission | Planetary, power shift transmission with three speeds forwards and three speeds reverse, speed and direction can be quickly shifted | |||
| Steering clutch | The steering clutch is hydraulic pressed, usully separated clutch | |||
| Steering brake | The braking clutch is pressed by spring, separated hydraulic,constant meshed type | |||
| Final drive | The final drive is two-planetary reduction gear mechanism, splash lubrication | |||
Description:
SD9 bulldozer: elasticity suspending, hydraulic-mechanical transmission, elevated sprocket track type, wholly hydraulic operation, pilot hydraulic controlling blade operation, modular designing components easily for maintaining, portable laborsaving nicety man-machine designing controlling system, electric monitoring, ROPS cabin, many optional equipment, broadly used in transport desert, oil field, power station, mine, swamp etc. Large-scale soil stone construction, you can select original American Cummins engine, emission standard meet with Tier3 with lower fuel consumption and stronger power output.
