Product Details:
Payment & Shipping Terms:
|
| Operating Weight(kg): | 18300 | Ground Pressure(kpa): | 28.3 |
|---|---|---|---|
| Dozing Capacity M3: | 4.52 | Engine Type: | Weichai |
| Overall Dimension: | 5585*4222*3190 | Min.Ground Clearance (mm): | 374.5 |
| High Light: | dozer construction equipment,heavy equipment bulldozer |
||

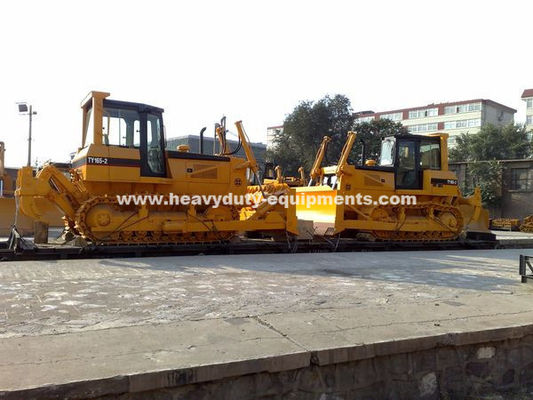

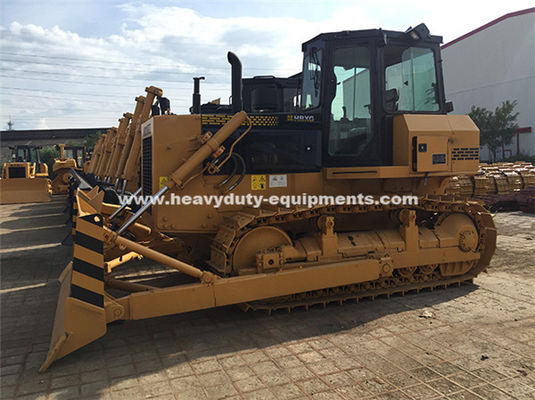

HBXG TYS165-2 Crawler Bullzoder Equipped With Weichai Engine And 203mm Pitch For Senegal
SPECIFICATION:
| Dozer | Tilt | Undercarriage system | ||
| Operating Weight(kg) with riper | 18300 | Type | ||
| Ground pressure(kpa) | 28.3 | Swing type sprayed beam | ||
| Track gauge (mm) | 2300 | Suspended structure of equalizer bar | ||
| Gradient | 30/25 | |||
| Min.Ground clearance (mm) | 374.5 |
N of track rollers N of carrier rollers |
6 for each side 2 for each side |
|
| Dozing capacity m3 | 4.52 | Pitch (mm) | 203 | |
| Blade width (mm) | 4222 | Width of shoe (mm) | 1000 | |
| Max digging depth (mm) | 400 | Gears | Forward | |
| Overall dimension | 5585*4222*3190 | Backward | ||
| Engine Type | weichai | Implement hydraulic system | ||
| Rated reverlation | 1850 | Max.system pressure | 12 Mpa | |
| Engine power (kw) | 121 | Pump type | 2 group gears | |
| Rated fuel consumption(g/kw.h) | <215 | System output (L/min) | 185 | |
| Driving system | ||||
| Torque converter | 3-element 1-stage 1-phase | |||
| Transmission | Planetary, power shift transmission with three speeds forwards and three speeds reverse, speed and direction can be quickly shifted | |||
| Steering clutch | Multiple-disc oil power metallurgy disc compressed by spring, hydraulic operated | |||
| Steering brake | Brake is oil two direction floating band brake operated by mechanical foot pedal | |||
| Final drive | The final drive are double reduction with spur gear and segment sprocket, which a sealed by duo-cone seal | |||
Description:

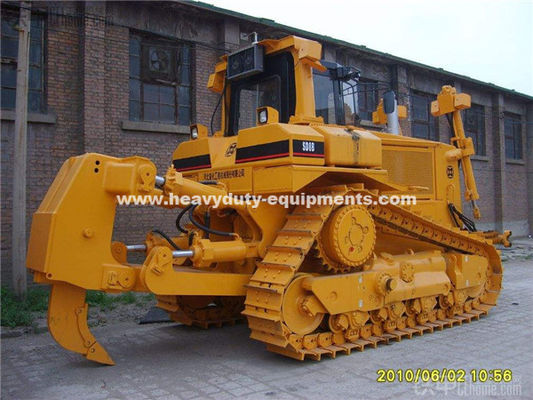

SD8B bulldozer are track-type dozer with elevated sprocket, hydraulic direct drive, semi-rigid suspended and hydraulic controls. Equipped with power separating hydraulic-mechanic type torque converter, planetary, power shift and one lever control transmission. SD8B bulldozer equipped with integrated hydraulic system, its new structure of modular assembling and disassembling; with handy, accurate operating system, electric monitoring, SD8B bulldozer can be equipped with many optional equipment and attachment, it can be used in road building, hydro-electric construction, land clearance, port and mine development and other construction field.
