|Engine:||Deutz 120kw||Bucket Capacity:||0.85-1.1m3|
|Max. Excavation Force:||147.1KN||Traveling Speed:||3.2/5.5km/h|
|Hammer Equipment:||Optional||Max Digging Depth:||6730mm|
|Max Digging Height:||6650mm|
hydraulic system excavator,
crawler hydraulic excavator
|Engine||DDE||Working device||Standard arm|
|Overall operating weight||20700kg||Bucket capacity||Hammer equipment|
|Max. excavation force||147.1KN||Swing speed||0-11.6r/min|
|Max digging radius||9940mm||Max digging depth||6730mm|
|Max digging height||6650mm||Engine rated power||120kw|
|Length of boom||5700mm||Max climbing angle||35°|
|Hydraulic system||Pilot operation positive flow||Cabin||

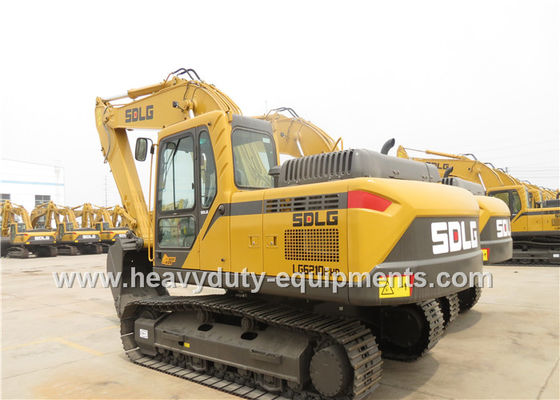

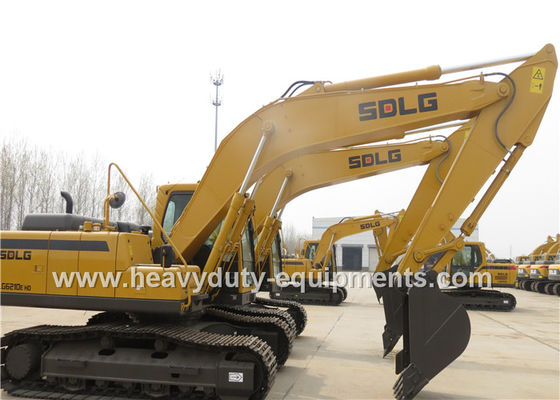

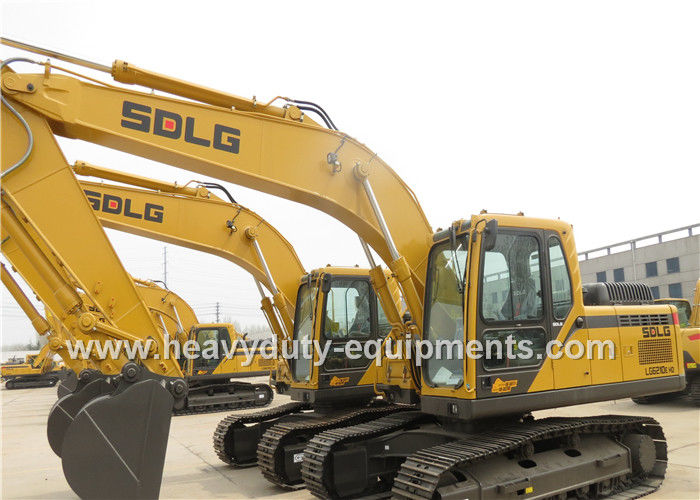

LG6210E is a core product jointly developed by SDLG and VOLVO according to the comprehensive market investigation by experts of both parties, and is equipped with high-strength chassis, reinforced implement and optimally-configured powertrain and hydraulic system, applicable for various severe working conditions.
1. The Deutz 2nd-generation supercharged and inter-cooled engine with electrically-controlled regulator EMR2 features strong power, proper economic and environmental performance and high reliability; besides, the engine is designed with three-stage filtering including pre-filtering and air filtering, effectively increasing the engine performance and service life.
2. The hydraulic system is applied with the double-pump constant power negative flow control and has the "auto-sensing operating mode" and the "single-pump/double-pump oil supply control mode*, featuring high efficiency and enabling excellent control performance of the complete machine.
3. The travelling system is driven by the two-speed adaptive traveling motor, and the wet brake is applied for traveling and swing mechanism, providing stable brake and high reliability.
4. It is equipped with the SDLG patented electronic control units like EECU, VECU and IECU, providing the complete unit with various working modes to meet the demands of different working conditions, and meanwhile realizing energy saving and high efficiency;
5. The color LCD monitor with such functions as self-inspection, monitoring, emergent fault alarm, GPS positioning and remote monitoring is installed, offering effective human-machine interaction and easy operation & maintenance.
Used in many ways like digging of trenches, holes, foundation; material handing; brush cutting with hydraulic attachments; forestry work; forestry mulching; driving piles, in conjunction with a pile driver; drilling shafts for footings and rock blasting, etc.
