Product Details:
Payment & Shipping Terms:
|
| Product Name: | Dump Truck | Application: | Transportation |
|---|---|---|---|
| Horse Power: | 251 - 350hp | Drive Type: | 6X4 |
| Cabin: | HW76 Cab | Cargo Body(CBM): | 27.39 |
| Highlight: | construction dump trucks,sinotruk dump truck |
||

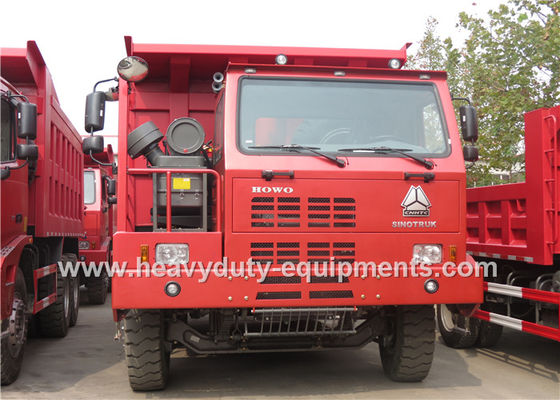

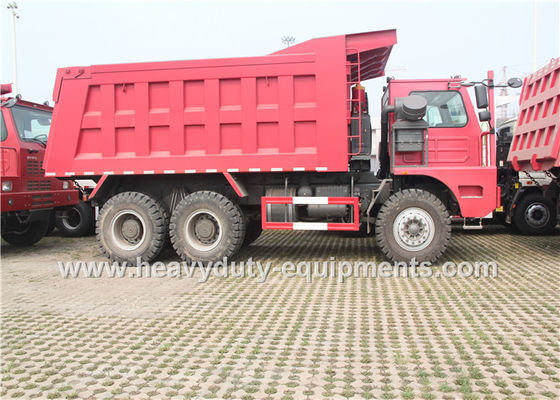

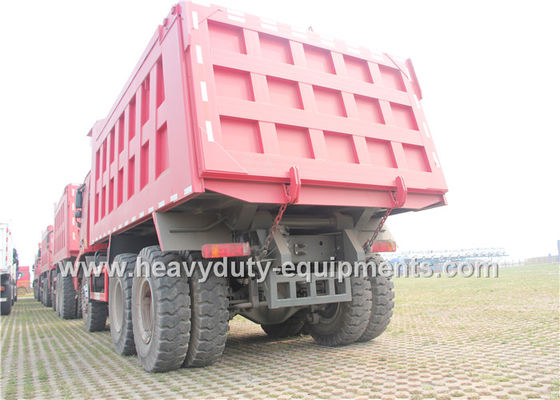

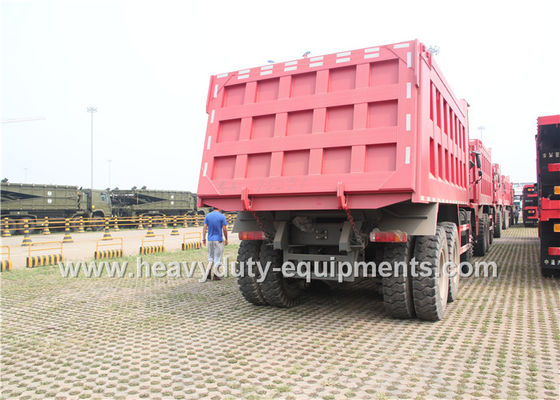

Sinotruk Howo 6x4 Mining Dump / dumper Truck / mining tipper truck / dumper lorry for big stones
Specifications:
|
Size parameters |
Dimension (mm) |
8360x3000x3475 |
|
|
Dimension in container (mm) |
5800x2800x1500 |
|
|
Wheelbase(mm) |
3800+1500 |
|
|
Front overhang/rear overhang (mm) |
1500/1560 |
|
|
Min.ground clearance (mm) |
380 |
|
|
Approach angle/departure angle(°) |
29/35.5 |
|
Weight parameters |
Total weight(kg) / Max.rated contained quality |
20000/40000 |
|
Performance parameters |
Max.speed (km/h) |
49 |
|
|
Max.gradeability ( %) |
50 |
|
Engine |
Model |
WD615.69 |
|
|
Rated engine power (kw/rpm) |
247/2200
|
|
|
Max.torque ( N.m/r/min) |
1350/1100-1600 |
|
|
Specific fuel consumption (g/kw.h) |
192 |
|
Clutch |
SINOTRUK 430 spiral spring |
|
|
Gearbox |
Model |
HW18710 FULLER 9 |
|
|
Ratio |
14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.8 1.34 1.00 R13.91 R3.18 |
|
Drive axle |
Strengthened wide steel two-grade reducing & double tires drive axle (10.24) |
|
|
Front axle |
Strengthened wide stiff front shaft |
|
|
Overhang |
Strengthened front parallel leaf semi-oval steel spring , column shock absorber , front stabilizer bar, strengthened rear complete balancer suspension , 4 U bolts obliquely equipped on single side , rear stabilizer bar |
|
|
Tire |
13.00-25 13.00-20Tube |
|
|
Brake system |
Service brake |
Dual circuit brake |
|
|
Park brake |
Spring energy air cut brake |
|
|
Auxiliary |
Engine exhaust brake |
|
Electric system |
Single line 24V negative grounded |
|
|
Fuel tank |
400L |
|
|
Min.diameter of tuming (m) |
22.5 |
|
Description:
The HOWO 70 mining dump truck adopts a cab with high strength framework covered with protective materials. The cab is opened from one side. It can be turned forwards by 50°. The front and rear lighting work lights facilitate night operations. The cab interior is comfortable. The good sealing property ensures comfortable driving environment even when the vehicle works under harsh conditions.
Omni-directional vision, fully taking the vehicle width of 3300mm and complex working condition needs into account.
Competitive Advantage
1. Large loading capacity: 60tons to 70tons
2. Low fuel consumption: Best engine combined with good gearbox and advanced tridem axles is the best powertrain matching.
3. Front axles steering system can increase the steering capacity at low speed. Real meet the mining area's demand.
4. Rear steering system reduce the turning radius which make the flexibility increased. Meanwhile, it can reduce tire wear. To reduce customers' cost.
5. Hydro pneumatic suspension system of rear 2 axles make it more comfortable for driver. Also, the axles can be protected better due to the perfect vibration reducing performance of the hydraulic system. This also can extend the service time of the trucks.
6. Horizontal regulator make it safer when unloading the goods.
