Product Details:
Payment & Shipping Terms:
|
| Pallet Size: | 1400×1100×50mm 1400×1100×14mm | Cycle Time: | 12-20s （as Per Mould） |
|---|---|---|---|
| Power: | 47.5kw | Electric Control Device: | SIEMENS |
| Total Weight: | 18.3t （Without Facemix） 6.9t（With Facemix） | Forming Area: | 1300×1050mm |
| High Light: | block moulding machine,block maker machine |
||

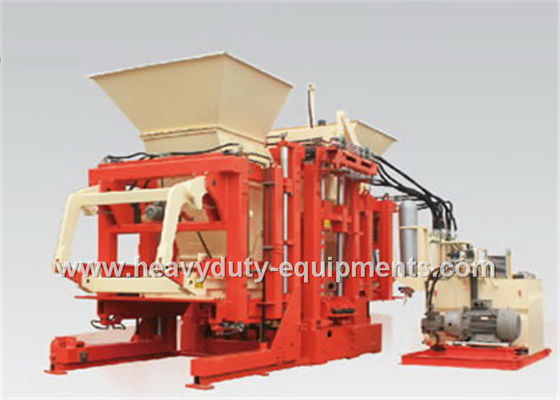

Industrial Automated Concrete Brick Making Machine 12-20 S Per Mould 1300×1050 mm Forming Area
| Forming Area | 1300×1050mm |
| Height of Finished | 50-500mm |
| Cycle Time | 12-20s (as per mould) |
| Hopper Volume | 3.8m³ for aggregate 3.8m³ for facemix |
| Pallet Size | 1400×1100×50mm 1400×1100×14mm |
| Vibration Table | (standard)×7.5kw |
| Top Vibration | 2×1.1kw |
| Electrical Control | Siemens |
| Power | 47.5kw |
| Total Weight | 18.3t (Without Facemix) 6.9t(With Facemix) |
Description:
Reduce the motor starting current and soft start function control, prolong the life of the motor. Main vibration adopt low frequency standby, high frequency operation, improve the speed of operation and product quality. Reduce mechanical accessory and motor damage, prolong the life of the motor and mechanical.The frequency conveter saving about 20%-40% power than the traditional conveter.
Advantage:
Germany Siemens PLC control system, Siemens touchscreen, Germany
Easy operation,low failure ratio, machine running stability and high reliability.Use the most-advanced industrial internet technology, realize remote trouble-shooting & maintenance. PLC and touchscreen use the PROFINET internet together, convenient for system diagnosis and WEB expansion. Achieve problem diagnosis and alarm system constantly, convenient for machine maintenance and troubleshooting. PLC running data for permanent preservation.

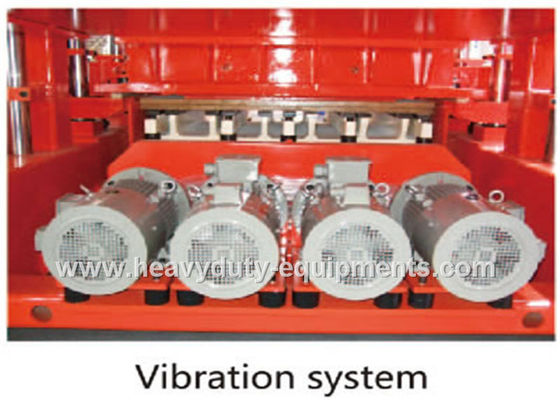

Vibration System
Vibration table consists with dynamic table and static table. When vibration begin,dynamic table vibrate,static table remain static.The structure is designed to ensure the amplitude of the vibration table, so as to ensure the high quality of concrete products. Vibration table using HARDOX steel. Vibration mode: using the vibration table vibration + top mould vibration; vibration motor installation vibration damping device and air cooling device.
Feeding System
Motor use SEW motors, which control two mixing shafts. Feeding frame, bottom plate and mixing blade are made of high-duty HARDOX steel, the location of bottom plate can be adjusted. Feeding system have sealing device to prevent leakage. The door of the discharging gate is controlled by the SEW motor.

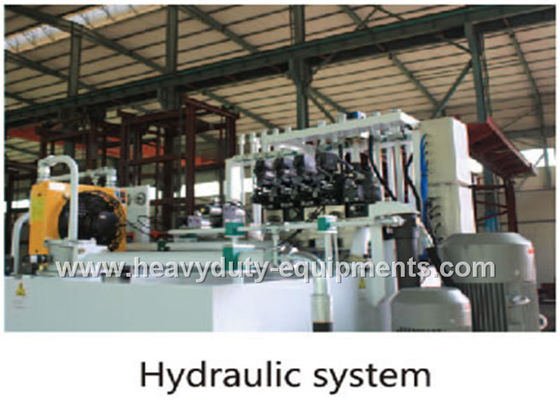

Hydraulic Station
Hydraulic pumps and hydraulic valves adopt international brands. Tube uses “Flange Connection”, convenient installation and maintenance. Multi-point pressure detection point, convenient detection. Digital temperature and blockage alarm function. Motor and pump connection, flange connection, good coaxial. Dynamic proportional valve and constant power pump, speed regulation, voltage regulation, energy saving.
