Product Details:
Payment & Shipping Terms:
|
| Model: | XG570 | Rated Lifting Capacity: | 7000kg |
|---|---|---|---|
| Turning Radius: | 3600mm | Load Center Distance: | 600mm |
| Fork: （L X W X H）: | 1400x150x70mm | Minimum Ground Clearance: | 166mm |
| Highlight: | forklift loading truck,forklift lift truck |
||

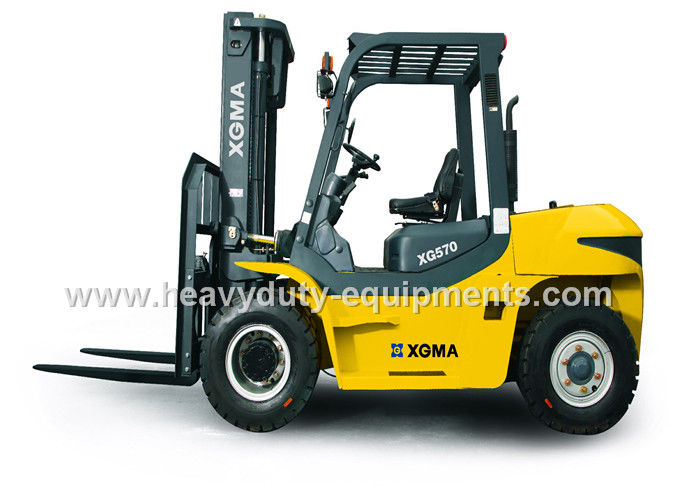

stable and reliable performance forklift for high intensity work
Specifications:
| Model | XG570 | Height of Overhead Guard(mm) | 2504 |
| Rated lifting capacity (kg) | 7000 | Maximum Lifting Height(mm) | 3000 |
| Weight (kg) | 10000 | Free Lifting Height(mm) | 170 |
| Turning radius (mm) | 3600 | Minimum Ground Clearance(mm) | 166 |
| Fork: L x W x H(mm) | 1400x150x70 | Track (Front/rear)(mm) | 1494/1500 |
| Overall Dimensions (LxBxH) (mm) | 5193x2018x2686 | Front tyre | 4x8.25-20-14PR |
| Maximum Travel Speed (km/h) | 26 | Rear tyre | 2x8.25-15-14PR |
| Gradeability (%) | 20 | Engine Model | YC J8401 |
| Load Center Distance(mm) | 600 | Engine Rated Power/Speed( kw/r • p • m) | 85/2200 |
| Tilt Angle of Mast (F/B) (°) | 7°/13° | Engine Max. Torque/Speed (N • m/r • p • m) | 425/1400-1600 |
| Wheelbase (mm) | 2500 |
Description:
SINOMTP-70BT II forklift is equipped with 8t forklift's driving axle and internal & external gantry, and the fork carriage is equipped with a pair of vertical rollers, which helps improve the complete machine's overload capacity.
Application:
Our forklift is widely used in short distance transportation as well as loading, unloading, and piling goods at warehouses and industrial and mining companies, port, wharf, station, warehouse.
Advantage:
1. Strengthened gantry and fork have the capacity of resisting impact and accomplishes high-intensity work.
2. Stable and reliable, simple in operations as well as maintenance. Customized for stone materials industry. construction site, etc.
3. Transmission system is equipped with cushion mat, which helps reduce the complete machine's vibration and noise.
4. Uses a reliable electronically monitored combination dashboard with LCD and waterproof inserted structure wiring system to enhance safety and reliability.
