Product Details:
Payment & Shipping Terms:
|
| Model: | SINOMTP-FD50B(big) | Power Source: | Diesel |
|---|---|---|---|
| Rated Load Capacity: | 5000kg | Fork Size (L×W×T): | 1220×150×60mm |
| Engine Brand Tilt(F/R): | ISUZU | Displacement: | 6494 Cc |
| High Light: | forklift loading truck,forklift lift truck |
||

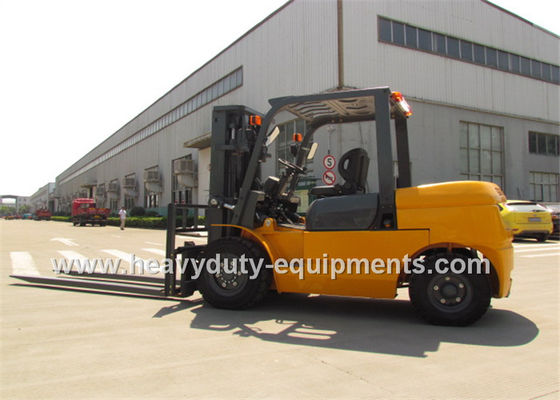

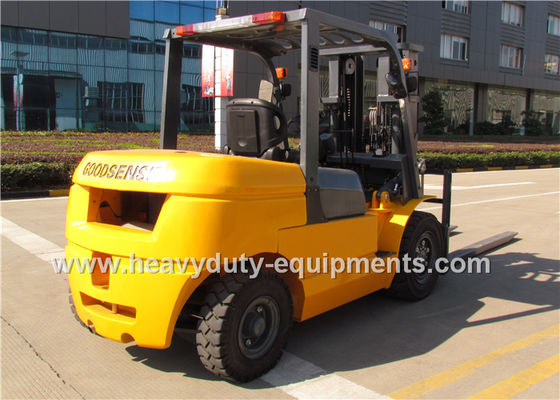

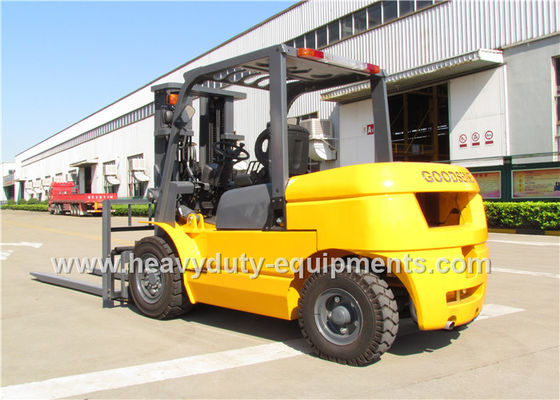

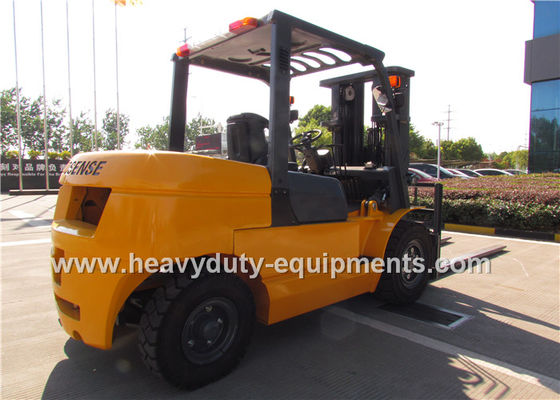

Sinomtp FD50 Industrial Forklift Truck 5000Kg Rated Load Capacity With ISUZU Diesel Engine
Specification:
| Type of model | FD50B(big) |
| Power source | Diesel |
| Rated load capacity | 5000kg |
| Load centre | 600mm |
| Lift height | 3000mm |
| Fork size (L×W×T) | 1220×150×60mm |
| Fork carriage tilt(F/R) | 6°/12° |
| Overall Length(Length to fork face) | 3450mm |
| Overall Width | 2010mm |
| Mast Lowered Height | 2550mm |
| Mast Extended Height | 4380mm |
| Overhead Guard Height | 2470mm |
| Gradeability(Laden) | 20% |
| Front Tire | 8.25-15-14PR |
| Rear Tire | 8.25-15-14PR |
Description:
| Engine Brand | ISUZU |
| Model | 6BG1 |
| Rated output | 82.3/2000kw/r.p.m |
| Rated torque | 416/1400-1600Nm/r.p.m |
| No. of cylinder | 6 |
| Bore x Stroke | 105X125 mm |
| Displacement | 6494 cc |
Advantage:
1. The instruments offer an easy accesses to the working condition of the truck, thus makes handling process more efficient and safe.
2. Supper low and non-slip make operating convenient and safe.
3. Designed according to ergonomic principles, makes operation much comfortable and also relieves the fatigue.
Wide-view mast gives the operator an enhanced forward visibility, which adds to the efficiency and safety of operator.
