SDLG RS8140 14 Ton Single Drum Road Roller 30Hz Frequency With Weichai Engine

China SDLG RS8140 14 Ton Single Drum Road Roller 30Hz Frequency With Weichai Engine supplier
SDLG RS8140 14 Ton Single Drum Road Roller 30Hz Frequency With Weichai Engine supplier SDLG RS8140 14 Ton Single Drum Road Roller 30Hz Frequency With Weichai Engine supplier SDLG RS8140 14 Ton Single Drum Road Roller 30Hz Frequency With Weichai Engine supplier SDLG RS8140 14 Ton Single Drum Road Roller 30Hz Frequency With Weichai Engine supplier

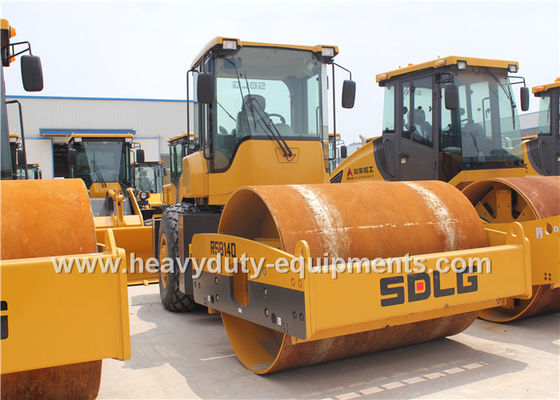

Large Image :  SDLG RS8140 14 Ton Single Drum Road Roller 30Hz Frequency With Weichai Engine

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC
Model Number: RS8140

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30 work days
Supply Ability: 100 units/month
Contact Now
Detailed Product Description
Model: RS8140 Engine: Deutz
Operating Wight (kg): 14000 Dimension (mm): 6113x2300x3140
Working Type: Single Steel Drum Vibration Cooling/Heating System: Heater
High Light:

road construction machinery

,

road machinery equipment

SDLG RS8140 14 Ton Single Drum Road Roller 30Hz Frequency With Weichai Engine





Specification:





Model RS8140 Transmission Hachi gearbox
Engine

Weichai Deutz Engine

WP6G125E202

Working type Single steel drum vibration
Drive system Rear wheel mechanical Cooling/Heating system Heater
Cabin Standard

Vibranting Frequency

(Hz)

30 Hz
Tyre Water filling

Vibrate range

(mm)

1.8/1 mm
Centrifugal force (kN) 261/145

Operating wight

(kg)

14000
Static linear load (N/cm) 322

Dimension

(mm)

6113x2300x3140



Description:

RS8140 mechanical single-drum vibratory road roller is a heavy-duty auto-propelled vibratory road roller and can effectively compact various soil layer and rock fill.



Advantage:

1.It is equipped with the Weichai engine meeting the requirements of China II stage emission standard, with strong power, reliable energy saving and fuel saving for more than 18%.

2.Synchro mesh transmission case is used, with three front gear positions and three rear gear positions, middle-position startup and reversing warning function, has stable shift performance and is light and comfort to operate..

3.International famous brand of vibration pump is used, with vibratory motor, stable quality and reliable performance.

4.Engine hood adopts electrically-controlled linear actuator and can be open up by one key, with large opening angle, reasonable layout, for repair position and is convenient for repair and maintenance.



Application:

With industrial leading level in compacting for road.
