Product Details:
Payment & Shipping Terms:
|
| Type: | High Weir Single Spiral Classifier | Model: | FLG-1200 |
|---|---|---|---|
| Rotating Speed Of Spiral (r/min): | 5.6.7 | Capacity Of Sand Return (t/d): | 1145~1600 |
| Capacity Of Overflow (t/d): | 150 | Spiral Diameter (mm): | 1200 |
| Spiral Length (mm): | 6500 | Slope Of Water Tank: | 14~18 |
| Highlight: | construction mining equipment,mining safety equipment |
||

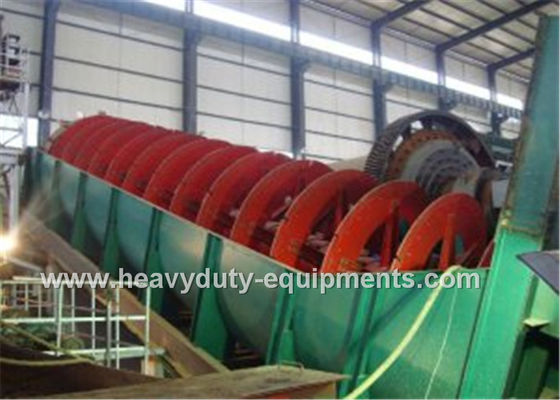

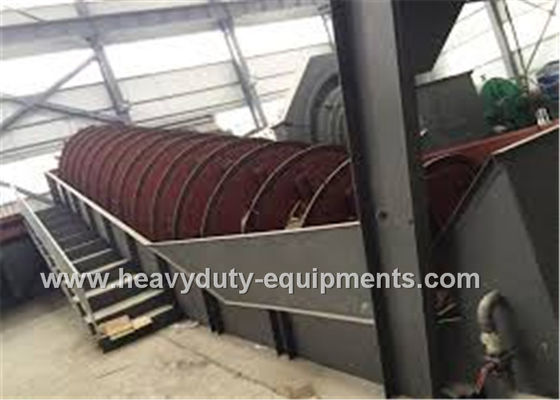

Sinomtp High Weir Single Spiral Classifier with different Capacity of Sand Return
Specification:
| Type | High Weir Single Spiral Classifier |
| Model | FLG-1200 |
| Rotating Speed of Spiral (r/min) | 5,6,7 |
| Capacity of Sand Return (t/d) | 1145~1600 |
| Capacity of Overflow (t/d) | 150 |
| Spiral Diameter (mm) | 1200 |
| Spiral Length (mm) | 6500 |
| Slope of Water Tank | 14 ~18 |
| Drive Motor Model | Y132M2-6 |
| Drive Motor Power (kW) | 5.5 |
| Lifting Motor Model | Y90L-4 |
| Lifting Motor Power (kW) | 1.5 |
| Weight (kg) | 7943 |
Description:
An automatic elevating apparatus is added to the discharge opening. The scoop in ball mill is eliminated bringing more stable operation. Classifying equipment takes use of the different sedimentation speed of the solid particle in slurry.
Application:
The overflow spiral blade is higher than overflow level, and the overflow spiral center is lower than overflow surface. The high wire spiral classifier is applied in the classification of ore with particle size 0.83-0.15mm
Working Principle:
The grinded pulp is fed into tank from the inlet in the middle of settlement region, and the slurry classification sedimentation area is under the inclined tank. The spiral with low speed rotation stirs the slurry, so that the fine particles rise, and the coarse particles sinks to the bottom of tank. Overflow weir is above the bearing center which is under screw shaft, and is underneath overflow end.
