Product Details:
Payment & Shipping Terms:
|
| Type: | Flotation Cell | Model: | XQFφ2500×7000 |
|---|---|---|---|
| Capacity(t/d): | 300 | Diameter(m): | 2.5 |
| Height(m): | 7.0 | Volume(m3): | 30.43 |
| Air Volume（m3/min): | 5.89 | Weight(t): | 9.7 |
| Highlight: | construction mining equipment,mining safety equipment |
||

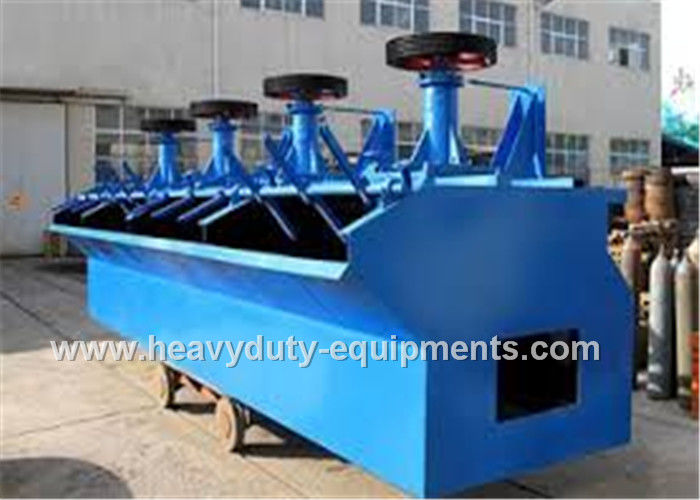

Sinomtp floatation cell equipment with 30 m3 Volume improves the floatation recovery rate
Specification:
| Type | Flotation Cell |
| Model | XQFφ2500×7000 |
| Capacity(t/d) | 300 |
| Diameter(m) | 2.5 |
| Height(m) | 7.0 |
| Volume(m3) | 30.43 |
| Air Volume(m3/min) | 5.89 |
| Air Pressure(Kpa) | 120.9 |
| Weight(t) | 9.7 |
Description:
A large floatation equipment with energy-saving 50-60%, floatation recovery rate improvement 1-5% and considerate price.Stirring ore slurry by pressure air, energy saving; installation of ore-reagents-air high speed mixing device and atomization device;
Products Application:

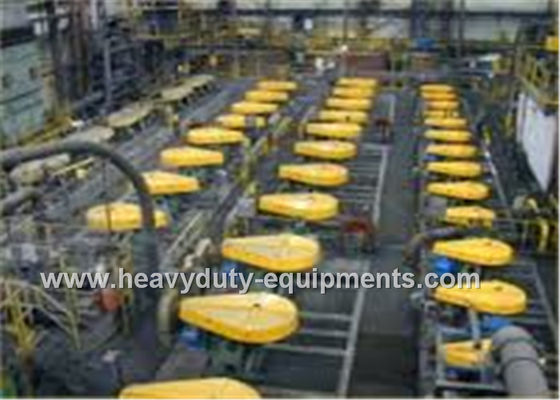

Flotation cell (total cross-section, air-lift, micro bubble) is widely used for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to coarse separation, swept separation, fine separation and flotation, so the useful ore are reclaimed.
Advantages:
1. Energy saving, up to 50~60%
2. Good floatation indexes
3. High utilization rate of air and reagents
4. Easy machinery selection
5. Resistance to corrosion and wear, long service life
6. Low maintenance cost and production cost
7. Less investment, good flotation cell price, small occupation area
