Product Details:
Payment & Shipping Terms:
|
| Type: | Vacuum Filter | Model: | MTP-PG58-6 |
|---|---|---|---|
| Filter Area (m2): | 58 | Quantity Of Filter Disc: | 6 |
| Diameter Of Filter Disc (mm): | 2700 | Rotating Speed Of Agitator (r/min): | 60 |
| Weight (kg): | 8000 | ||
| Highlight: | construction mining equipment,mining safety equipment |
||

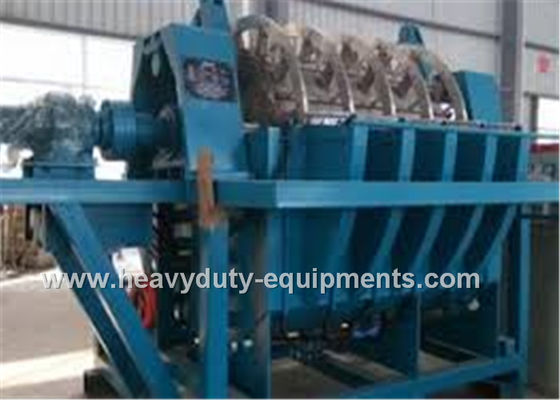

PG58-6 Vacuum Filter with 6 * 58m2 Filter used for floating in clean coal
Specification:
| Model | MTP-PG58-6 | |
| Filter Area (m2) | 58 | |
| Quantity of Filter Disc | 6 | |
| Diameter of Filter Disc (mm) | 2700 | |
| Rotating Speed of Filter Disc (r/min) | 1 | 0.15~0.67 |
| 2 | 0.254~1.14 | |
| Rotating Speed of Agitator (r/min) | 60 | |
|
Main Drive Motor |
Model | YCT160-4B |
| Power (kW) | 3 | |
| Rotating Speed (r/min) |
1250~125 | |
|
Drive Motor of Agitator |
Model | Y100L1-4 |
| Power (kW) | 2.2 | |
| Rotating Speed (r/min) |
1440 | |
|
Vacuum Pump |
Model | SZ-4 |
| Quantity | 2 | |
| Blower | Model | SZ-3 |
| Quantity | 1 | |
| Weight (kg) | 8000 | |
| Overall Dimensions: (LXWX H) (mm) | 3930X3355X3275 | |
| Sedimentation Area | 9～116m2 | |
Description:

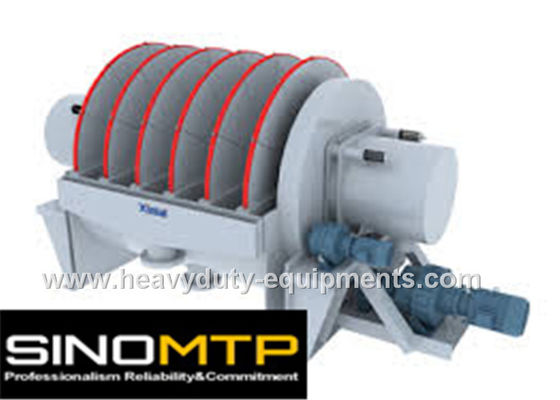

A vacuum filter with vertical discs consisted of fanning plates.
Advantages:
1.Large filtering area, large capacity, and full dehydration.
2.Marked technical and economic effect.
3.Small area taken, easy to manufacture and strong adsorption ability.
4.Polypropylene plastic plate, light weight, corrosion resistance, stepless speed regulation, change spindle speed according to different needs.
Work Principle:
1.Filter plate immersed in the pulp while in operation produces a surface absorption of filter cake, with the action of capillarity and integrated with vacuum pressure.
2.Filtrate enters distributing valve and drainage tank through filter plate. Filter cake comes out from slime hopper receiving spray washing. Filter cake falls into the tank by the pressure from the wind and scraper.
