Product Details:
Payment & Shipping Terms:
|
Product Name: | Dump Truck | Application: | Transportation |
---|---|---|---|
Horse Power: | 371 Hp | Drive Type: | 6X4 |
Cabin: | HW76 Cab | Cargo Body(CBM): | 32.92 |
High Light: | construction dump trucks,commercial dump trucks |

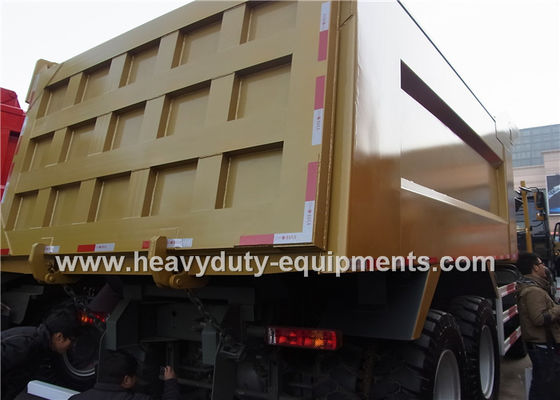

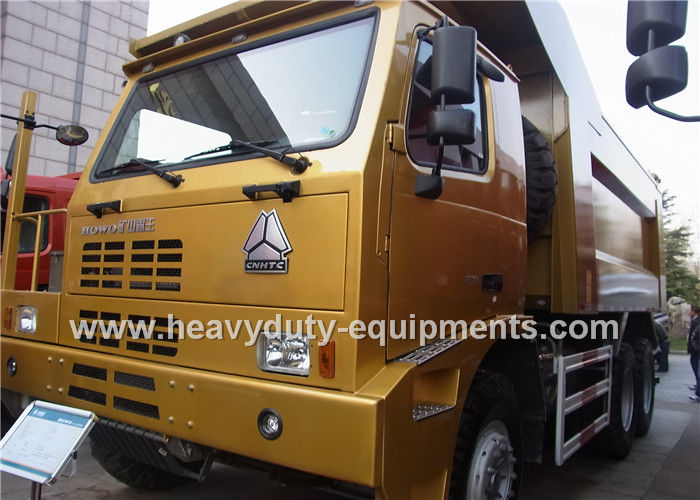

heavy loading HOWO dump Truck with Chassis with WABCO System / Strengthen Bumper
Specifications:
Dimension(Lx W xH)(unloaded)(mm) |
8745x3200x3670 |
|
Cargo body size (L*W*H, mm)(mm) |
5900*3100*1800, bottom:16mm, side:12mm, |
|
Approaching angle/Departure angle(°) (°) |
32/40 |
|
Overhang(front/rear) (mm) |
1500/1800 |
|
Wheel base (mm) |
3800+1500 |
|
Max speed(km/h)(km/h) |
46 |
|
Min.ground Clearance(mm) |
340 |
|
Max.gardeability(%) |
42 |
|
Min.turning Radius(e) |
22 |
|
Curb weight(kg) |
23000 |
|
Loading Weight(kg) |
55000 |
|
Engine
|
Model |
WD615.47,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection |
|
Fuel type |
Diesel |
|
Horse Power, max(kw/rpm) |
371HP,247/2200 |
|
Emission |
EURO2 |
Fuel tanker capacity (L) |
500 |
|
Transmission |
Model |
HW19710 |
Brake system |
Service brake |
Dual circuit compressed air brake |
|
Parking brake |
spring energy, compressed air operating on rear wheels
|
Steering system |
Model |
ZF8098 |
Front axle |
HF12 , Steering with double T-cross section bea |
|
Rear axle |
AC26, assembling axle housing, central double reduction with differential locks between axles and wheels |
|
Color |
White, red,Yellow .ect |
|
Tyre |
14.00-R25 36 level |
|
Electrical system |
Battery |
2X12V/165Ah |
|
Alternator |
28V-1500kw |
|
Starter |
7.5Kw/24V |
Cab |
HW76 cab, (with air-condition), Unilateral cab |
Description:
Nowadays, there are numerous tipper modification manufacturers. Choosing manufacturers and choosing products are equally important. In addition to inspecting the product, customers also need to learn multiple aspects of the manufacturer, such as design capability, technological equipment, after-sales service commitment, accessories purchasing, and so on.
Applications:
It is suitable for in normal roads and tough roads, to transport and unload transport, stone, ore, and others loose materials.
Competitive Advantage
1, High technology make the truck much more perfect than other brand trucks!
2, Longer lifespan and low lost which can save you money and make you earn more!
3, High reliability can achieve run effeciency and much more loading!
4, High safety all around make your drive safe!
5. Technique support and training.
6, Customization service, as per your request, we will customize our production for you
