Payment & Shipping Terms:
|Dimension:||8975x2710x3240||Cutting Depth Of Blade:||787mm|
|Hydraulic System:||Mechanical Operation||Transmission Type:||HANGCHI 6wg180 Gearbox|

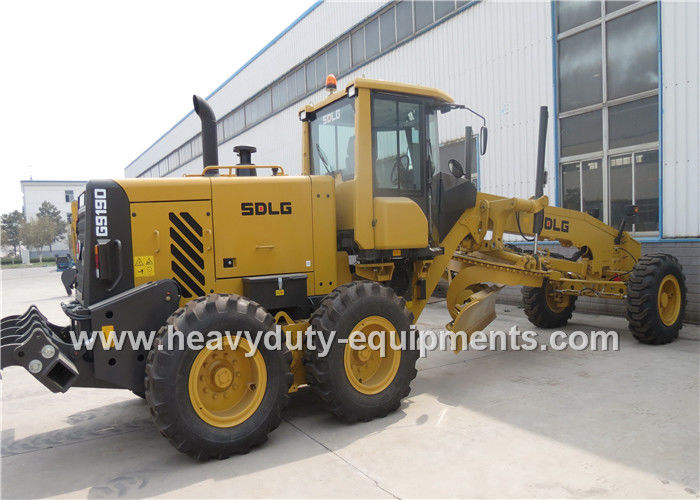

DEUTZ Engine Road Construction Equipment Yellow Motor Grader Meichi Axle Drive
|Model||G9190||Brake system||Chain transmission drum brake|
|Engine||DDE BF6M1013EC||Driving type||Rear axle drive|
|Rated Power||148kW||Dimension (LxWxH)(mm)||8975x2710x3240|
|Transmission type||HANGCHI 6wg180 Gearbox||Standard operating weight (kg)||15800|
|Drive Axle||Meichi Axle||cutting depth of blade||787mm|
|Hydraulic system||Mechanical operation||Blade Dimension(mm)||--|
G9190 is a product of high speed, high efficiency, high accuracy and multiple purposes developed by SDLG on the basis of advanced technology of VOLVO, can be used for ground leveling and grooving, scraping slope, bulldozing, ploughing snow, loosening, compacting, material arrangement and mixing works, and is widely applied in construction operating condition of road, airport, defense engineering, mine construction, road construction, water conservancy construction and farmland improvement and so on.
1. Swing frame is made of lubrication-free and maintenance-free composite bearing, with small frictional coefficient, high reliability and is shock-proof and wear-proof; Hydraulic lock cylinder location is adopted and is easy to operate.
2. Shovel nose tool structure and cylinder is reasonably arranged, with high levelness in operation.
3. Electrically-controlled variable power DEUTZ engine is used and has three power curves in perfect matching with Advance transmission case, which makes it available to select applicable power mode based on load to realize an optimum performance and fuel efficiency and high efficiency and energy saving function.
4. It is equipped with dual-cylinder driven tray-type working device of advanced VOLVO technology and domestic industrial originated dual rotatory cylinder and rotatory valve structure which is of large drive power and can rotate with load.
