Product Details:
Payment & Shipping Terms:
|
| Model: | G9220 | Engine: | DDE BF6M1013EC |
|---|---|---|---|
| Dimension: | 8975x2710x3240 | Hydraulic System: | Mechanical Operation |
| Max. Speed (km/h): | 39 | Cutter: | 1626mm |
| High Light: | road construction machinery,road construction safety equipment |
||

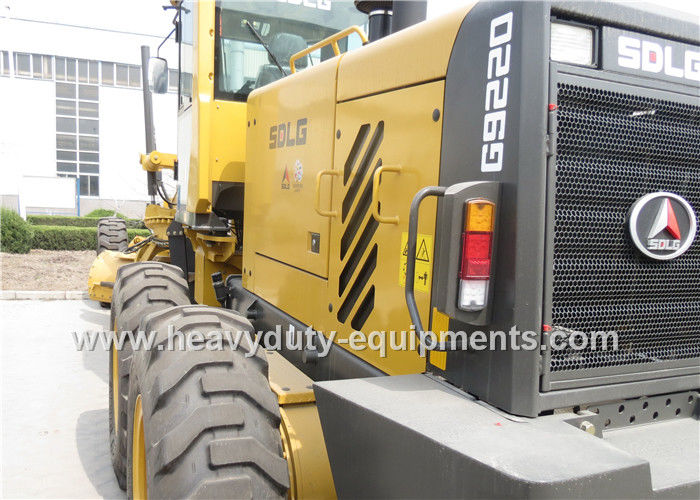

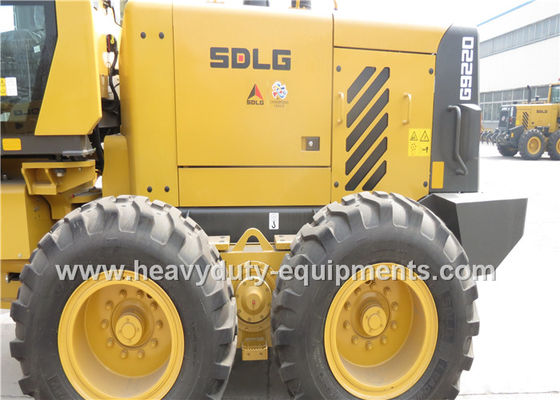

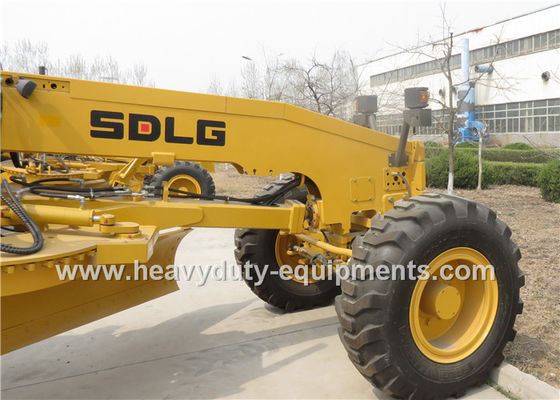

Mechanical Road Construction Equipment Full Wheel Driving Motor Grader ZF Transmission
Specification:
| Model | G9220 | Brake system | Chain transmission drum brake |
| Engine | DDE | Driving type | Rear axle drive |
| Rated Power | 158kW 2200r/min | Dimension (LxWxH)(mm) | 8975x2710x3240 |
| Transmission type | ZF6WG200 Gearbox | Standard operating weight (kg) | 16500 |
| Drive Axle | Meichi Axle |
Blade specification (mm) |
4267x635x22 |
| Hydraulic system | Mechanical operation | Max. speed (km/h) | 39 |
Description:
Frame structure welded by box beam is of integrated modularized design; the rear agitator and other accessories can be accessed conveniently for removal and installation, and are independent of the transmission system such that the impact load will only be transfered to the rear frame, ensuring high reliability.
Advantage:
1.The swing frame utilizes lubrication-free and maintenance-free composite bearing featuring small friction coefficient high impact and wear resistance and strong reliability.
2.The working device applies 7-hole linkage mechanism and electro-hydraulic cylinder locking mechanism, ensuring safe and convenient operation.
3.The cab is equipped with FOPS/ROPS system, and has good sealing performance and high safety and reliability; the front field of vision is clear that front wheels and blade can be seen, facilitating operation and enhancing working precision.
