Product Details:
Payment & Shipping Terms:
|
| Model: | G9220 | Engine: | DDE BF6M1013EC |
|---|---|---|---|
| Dimension: | 8975x2710x3240 | Operating Weight (kg): | 16500 |
| Blade Specification (mm): | 4267x635x22 | Transmission Type: | ZF6WG200 |
| High Light: | road construction machinery,road machinery equipment |
||

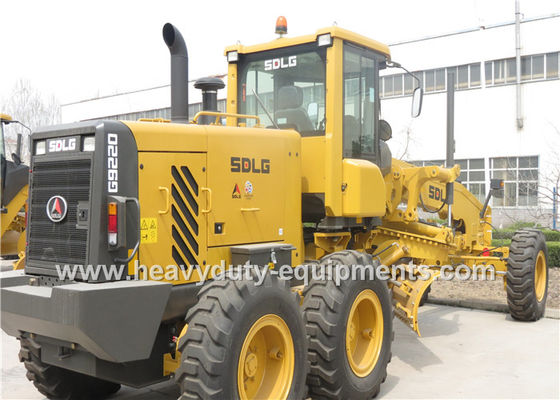

87KN Tractive Force Motor Grader 39Km / H Road Machinery Equipment DDE Engine
Specification:
| Model | G9220 | Brake system | Chain transmission drum brake |
| Engine | DDE | Driving type | Rear axle drive |
| Rated Power | 158kW 2200r/min | Dimension (LxWxH)(mm) | 8975x2710x3240 |
| Transmission type | ZF6WG200 | Standard operating weight (kg) | 16500 |
| Drive Axle | Meichi |
Blade specification (mm) |
4267x635x22 |
| Hydraulic system | Mechanical operation | Max. tractive force (f=0.75) | 87kN |
Description
G9220, a high-speed, high-efficient and high-precision multi-purpose product developed by SDLG introducing the VOLVO advanced technologies, is applied to ground leveling, ditching, slope scrapping, bulldozing, snow plowing, loosening, compacting, material distribution, mixing and other similar operations.
Advantage:
1.The working device applies 7-hole linkage mechanism and electro-hydraulic cylinder locking mechanism, ensuring safe and convenient operation.
2.The cab is equipped with FOPS/ROPS system, and has good sealing performance and high safety and reliability; the front field of vision is clear that front wheels and blade can be seen, facilitating operation and enhancing working precision.
