Product Details:
Payment & Shipping Terms:
|
| Model: | SR14D-3 | Engine: | Cummins QSB4.5 |
|---|---|---|---|
| Total Weight (Kg): | 14000 | Front Wheel Weight (kg): | 7000 |
| Theoretical Gradeability (%): | 30 | Static Linear Load (N/cm): | 322/322 |
| High Light: | road machinery equipment,road construction safety equipment |
||

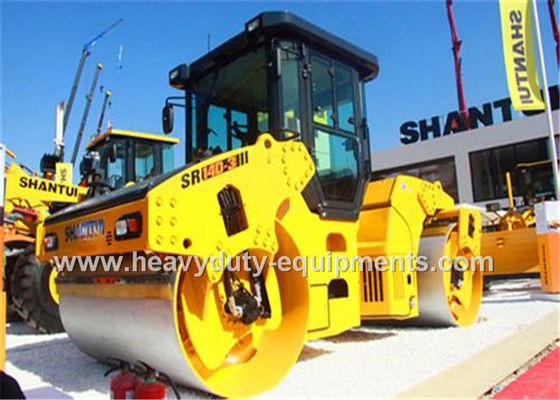

Double drum vibratory road roller SR14D-3with 14ton operating weight with cummins engine
Specification:
| Model | SR14D-3 | High vibration amplitude | 0.8 |
| Length × width × height (mm) | 5208×2297×3060 | Low vibration amplitude | 0.3 |
| Total weight (kg) | 14000 | Vibration frequency (high/low) (Hz) | 67/51 |
| Front wheel weight (kg) | 7000 | Centrifugal force (high/low) (kN) | 170/112 |
| Theoretical gradeability (%) | 30 | Engine model | Cummins QSB4.5 |
| Vibratory drum width (mm) | 2130 | Static linear load (N/cm) | 322/322 |
Description:
SR14D-3 new generation high-frequency electronically controlled double-drum vibratory road roller adopts the modular frame structure and the inclined drum support, featuring prominent quality and high efficiency. This product is applicable for the road base layer and medium and small filling projects and is one ideal machine for pavement of concrete roads. It can work with spreader to sufficiently play the comprehensive advantages of complete equipment set.
Advantage:
1. The electrohydraulic control adopts the internally supplied units and the advanced matching design and sophisticated control technology guarantee reasonable vibration start and stop times and good compacting uniformity.
2. The spacious and bright cab features excellent comfort and visual field.
3. The slidable and 180º rotatable control console can be adjusted depending on the operator’s needs.
4. The high resolution display screen can clearly display the information for the water level, oil level, water temperature, oil temperature, frequency, and impact cycles to provide a comfortable environment for the operations.
5. SR14D-3 provides good visual field and driving comfort for the accurate operations.
6. The gull-wing engine hood design is adopted. When the gull-wing hoods on two sides are opened, the engine and hydraulic pump are completely revealed in the operation range so that the maintenances points can be fulfilled on the ground. The merely 40L hydraulic oil tank can save the maintenance cost for the user. The water sprinkling system is located on the lower portion of the machine body to ease the cleaning of water sprinkler filter and nozzle and the water drainage in cold days.
