Product Details:
Payment & Shipping Terms:
|
| Model: | SR16P | Front Wheel Weight (kg): | 10000/10800 |
|---|---|---|---|
| Engine Model: | Cummins 6BT5.9-C152 | Total Weight(kg): | 16000/16500 |
| Rated Power (kW): | 112 | High Vibration Amplitude: | 1.8/1.6 |
| High Light: | road construction machinery,road construction safety equipment |
||

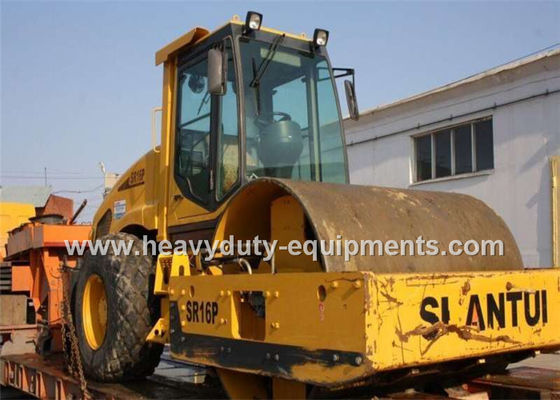

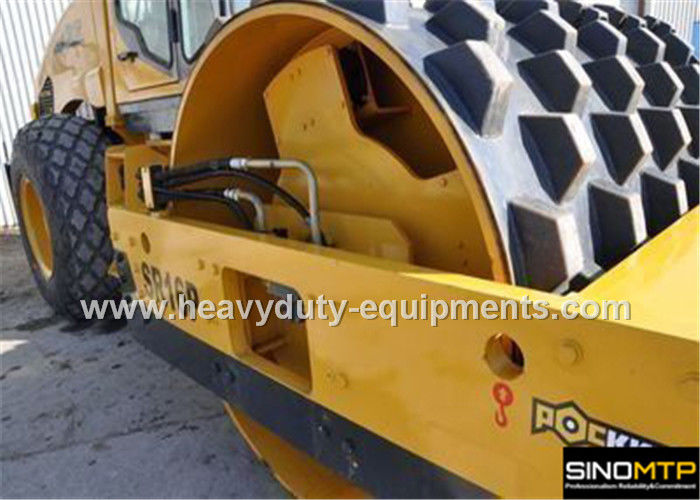

Shantui road roller SR16P equipped with Cummins 6BT5.9-C152 engine
Specification:
| Length × width × height (mm) | 5710×2450×2980 | Total weight(kg) | 16000/16500 |
| Front wheel weight (kg) | 10000/10800 | Theoretical gradeability (%) | 45 |
| Vibratory drum width (mm) | 2140 | Static linear load (N/cm) | 468/505 |
| High vibration amplitude | 1.8/1.6 | Low vibration amplitude | 0.76/0.6 |
| Vibration frequency (high/low) (Hz) | 32/28 | Centrifugal force (high/low) (kN) | 317/167 |
| Engine model | Cummins 6BT5.9-C152 | Rated power (kW) | 112 |
Description:
SR16/SR16P full-hydraulic single-drum vibratory road roller incorporates double traveling drive system and high-span centrifugal force and the compacting scheme can be customized for different density specifications. This product is applicable for compacting various non-clayed soils and concretes and is an ideal machine for various industrial sites and infrastructure projects.
Advantage:
1. The double traveling drive system provides power to the front drum and rear axle to achieve outstanding control performance and traction force for the whole machine.
2. Two speeds are at your choice, of which the low speed is suitable for vibratory compacting operation and climbing and the high speed can realize rapid transfer and large-range movement of the machine.
3. Standard double-amplitude function expands the application scope of the equipment.
4. The high span between high and low centrifugal forces helps the establishment of compacting schemes for different density specifications.
