Product Details:
Payment & Shipping Terms:
|
| Model: | SR14M-2 | Engine Model: | Shangchai SC4H130G2 |
|---|---|---|---|
| Rated Power(kW): | 95 | High Vibration Amplitude: | 1.73/1.44 |
| Static Linear Load (N/cm): | 332/383 | Vibratory Drum Width (mm): | 2130 |
| High Light: | road construction machinery,road construction safety equipment |
||

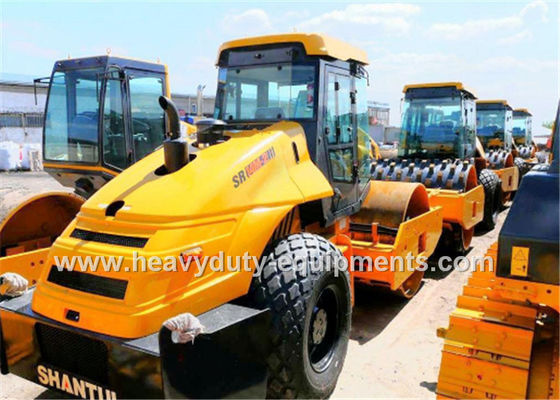

Shantui Mechanical Single Drum Vibratory Road Roller 14T operating weight , 2130mm drum width
Specification:
| Model | SR14MP-2 | Vibratory drum width (mm) | 2130 |
| Theoretical gradeability (%) | 30 | High vibration amplitude | 1.73/1.44 |
| Static linear load (N/cm) | 332/383 | Vibration frequency (high/low) (Hz) | 30 |
| Low vibration amplitude | 0.87/0.73 | Engine model | Shangchai SC4H130G2 |
| Centrifugal force (high/low) (kN) | 272/138 | Rated power(kW) | 95 |
Description:
SR14M-2/SR14MP-2 mechanical single-drum vibratory road roller is a self-propelled high-efficiency compacting machine that utilizes own weight and the centrifugal force to compact various kinds of construction and road building materials. This machine can be used for the compacting of infrastructure projects and is especially suitable for the high-density compacting of the non-clayed materials as well as the clayed and semi-clayed materials.
Advantage:
1.The streamline rear hood features beautiful and elegant modeling and broad visual field and the imported seat and rubber shock-absorbing design minimize the working strength of the operator.
2.Standard double-amplitude function expands the application scope of the equipment.
3.The high span between high and low centrifugal forces helps the establishment of compacting schemes for different density specifications.
4.The design of the drum vibration parameters conforms to the requirements of working site and the padfoot drum can be assembled to expand the application scope.
