Product Details:
Payment & Shipping Terms:
|
| Model: | XG6032D | Engine: | Cummins A1700 |
|---|---|---|---|
| Operating Weight (kg): | 3100 | Drum(D×W) (mm): | φ700×1200 |
| Min. Ground Clearance (mm): | 260 | Centrifugal Force (KN): | 30 |
| High Light: | road machinery equipment,road construction safety equipment |
||

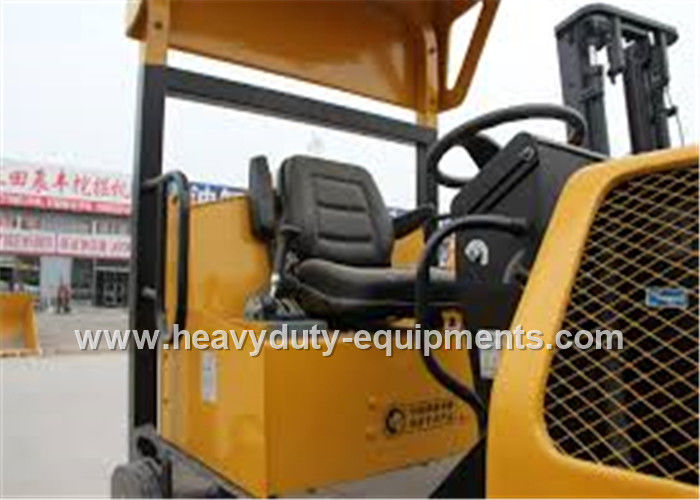

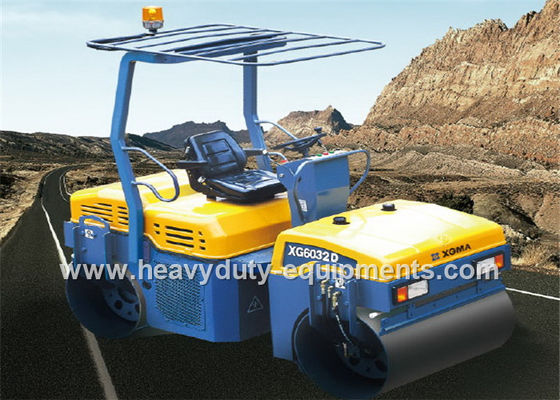

XGMA XG6032D Road Construction Equipment Tandem Vibratory Roller Cummins Engine
Specification:
| Model | XG6032D | Steering Angle (°) | ±30° |
| Engine Model | Cummins A1700 | Rated Speed (r/min) | 2800 |
| Operating Weight (kg) | 3100 | Swing Angle (°) | ±12° |
| Drum(D×W) (mm) | φ700×1200 | Vibration Frequency (Hz) | 50 |
| Theoretical Gradeability (%) | 20 | Nominal Amplitude (mm) | 0.5 |
| Min. Turning radius (mm) | 4450 | Centrifugal Force (KN) | 30 |
| Min. Ground Clearance (mm) | 260 | Speed Range (Km/h) | 0-10 |
Description:
Our tandem drum vibratory roller, a kind of light-duty vibratory roller, is particularly designed for compacting the ground or asphalt surface of city roads, stadiums, municipal works, etc.
Advantage:
Application:
It can also be used for compacting small foundations and sub-foundations, sand soil and gravel materials.
