|Engine Model:||Weichai WP4G110E220||High Vibration Amplitude:||1.4|
|Low Vibration Amplitude:||0.78||Vibratory Drum Width (mm):||2140|
|Centrifugal Force (high/low) (kN):||180||Static Linear Load (N/cm):||378|

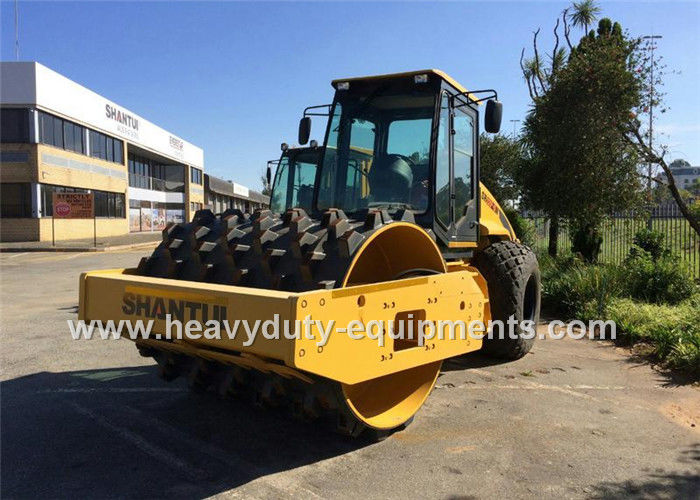

Shantui 12tons single drum road roller SR12-5 with hydraulic motion , weichai engine
|Model||SR12-5||High vibration amplitude||1.4|
|Length × width × height (mm)||6021×2362×3127||Low vibration amplitude||0.78|
|Total weight (kg)||13.45t||Vibration frequency (high/low) (Hz)||30|
|Front wheel weight (kg)||8250||Centrifugal force (high/low) (kN)||180|
|Theoretical gradeability (%)||48||Engine model||Weichai WP6G140E22|
|Vibratory drum width (mm)||2140||Static linear load (N/cm)||378|
The double traveling drive system provides power to the front drum and rear axle to achieve outstanding control performance and traction force for the whole machine.
1.Two speeds are at your choice, of which the low speed is suitable for vibratory compacting operation and climbing.
2.The high speed can realize rapid transfer and large-range movement of the machine.
3.Standard double-amplitude function expands the application scope of the equipment.
4.The high span between high and low centrifugal forces helps the establishment of compacting power system schemes for different density specifications.
It is suitable for the high-density compacting of the non-clayed materials as well as the clayed and semi-clayed materials.
