Product Details:
Payment & Shipping Terms:
|
| Production: | Spiral Classifier | Spiral Dia.: | 500mm |
|---|---|---|---|
| Rotary Speed: | 8-12.5r/min | Tank Length: | 4500mm |
| Motor Drive: | 1.1kw | Dimension L*W*H: | 5430*680*1480 |
| High Light: | rock crushing machines,stone crushing machine |
||

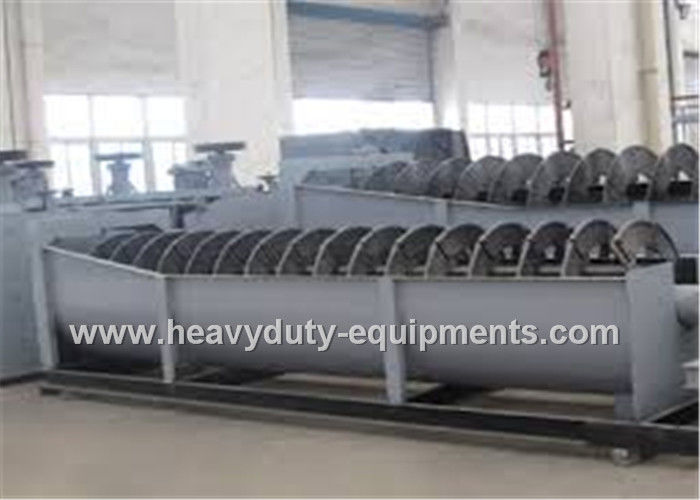

Powerful self-contained spiral lifting device spiral classifier 500mm spiral dia
Specification:
| Product | spiral classifier |
| Spiral dia. (mm) | 500 |
| Rotary speed (r/min) | 8-12.5 |
| Tank length(mm) | 4500 |
| Motor drive (kw) | 1.1 |
| Motor adust (kw) | / |
| Dimension L*W*H | 5430*680*1480 |
Description :
As the important part of beneficiation line, spiral classifiers are designed to provide the most effective pool area and overflow velocity requirements. According to the theory that the deposition rates are quite different because of different solid particles' specific gravity, the spiral classifier is not only able to clean the ground mineral ore, but also separate the particles briefly.
Application:
Spiral Classifiers are usually suitable for the following situations:
Advantage :
1. Energy saving
2. Heavy duty, rugged construction
3. Powerful self-contained spiral lifting device
4. Continuous spiral raking
