|Model:||CAT326D2L||Engine:||Cat® C7.1 ACERT™|
|Overall Operating Weight:||28475.0 Kg||Max. Excavation Force:||227 KN|
|Traveling Speed:||5.8 Km/h||Engine Rated Power:||145 Kw|
hydraulic shovel excavator,
crawler hydraulic excavator
Caterpillar Hydraulic Excavator Heavy Equipment , 5.8Km / H Excavation Equipment
|Engine||Cat® C7.1 ACERT™||Working device||Standard arm|
|Overall operating weight||28475.0 kg||Bucket capacity||0.6 SLR Bucket|
|Max. excavation force||227 KN||Swing speed||9.6rpm|
|Traveling speed||5.8 km/h||Pilot System – Maximum Flow||23.4 L/min|
|Boom Cylinder – Stroke||1305.0 mm||Stick Cylinder – Stroke||1660.0 mm|
|CB1 Bucket Cylinder – Stroke||1156.0 mm||Engine rated power||145 kw|
|Maximum Pressure –Equipment||35.0 MPa||Swing System – Maximum Flow||233.0 L/min|

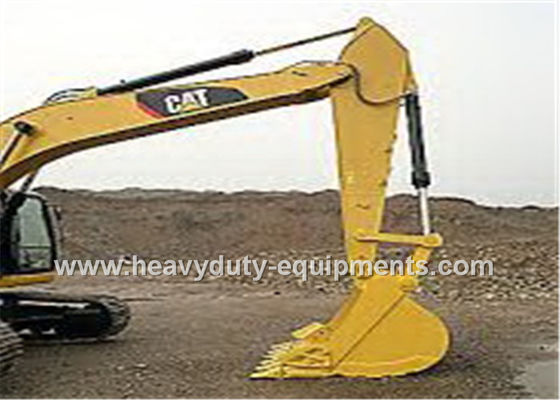

The 5.9 m (19'4") heavy-duty (HD) reach boom is reinforced to be used in the severest applications for maximum digging capability. The boom is made of high-tensile-strength steel using a large box-section design with interior baffle plates and an additional bottom guard for long life and durability. Booms and sticks are stress-relieved for added durability.
1. The design and layout of the 326D2 L was made with the service technician in mind. Most service locations are easily accessible at ground level to allow service and maintenance to get completed quickly and efficiently.
2. The air filter features a double-element construction for superior cleaning efficiency. When the air cleaner plugs, a warning is displayed on the monitor screen inside the cab.
3. A service door on the right side of the upper structure allows ground-level access to the pump, pilot filter, and water separator with primary fuel filter.
4. The left rear service door allows easy access to the engine radiator, oil cooler, air to air after cooler, water separator, second and third fuel filters, and fuel cooler. A reserve tank and drain cock are attached to the radiator for simplified maintenance.
