|Operating Weight (Ripper Not Included):||17t||L×W×H (Ripper Not Included):||5140×3388×3032mm|
|Blade Type:||Straight Tilt Blade||Blade Width:||Straight Tilt Blade 3388×1149mm|
shantui construction machinery,
dozer construction equipment

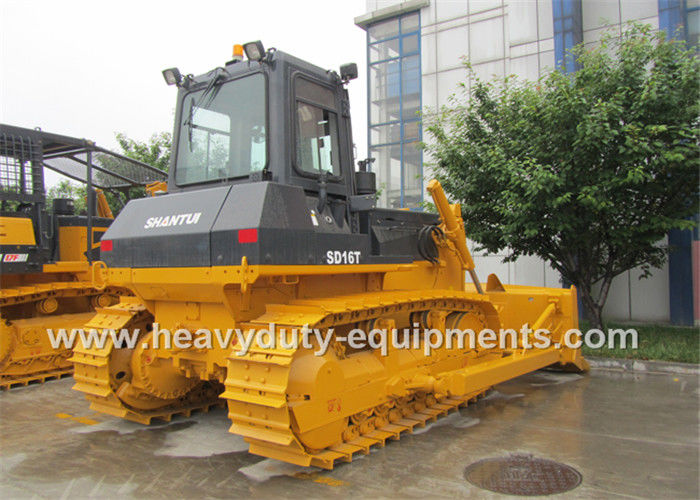

Shantui bulldozer SD16 equipped with Shangchai SC11CB184G2B1 engine
|L×W×H (Ripper not included)||5140×3388×3032mm||Ripping depth of ripper||Three-shank ripper 572mm|
|Operating weight (Ripper not included)||17t|
|Rated power||135kw||Lifting height of ripper||Three-shank ripper 592mm|
|Gradeability||30°||Number of carriers (each side)||2|
|Blade type||Straight tilt blade||Number of track rollers (each side)||6|
|Blade width||Straight tilt blade 3388×1149mm||Number of track shoes (each side)||37|
|Width of track shoe||510mm|
|Ground length and ground pressure||2430-0.067mm/MPa|
|Dozing capacity||Straight tilt blade 4.5m3||Pitch||203.2mm|
|Max drop below ground of blade||540 mm||Reverse speed||0–4.28km/h|
|Lift height of blade||1095 mm||0–7.59km/h|
|Ripper type||Three-shank ripper||0–12.53km/h|
The SD16 is equipped with a hydraulic drive system with hydraulic control technology and has an advanced structure, providing reliable performance and convenient and flexible operation, making the SD16 an ideal construction machine.
1. The intelligent service system features automatic fault detection, diagnosis, and remote technical support.
2. The cab features roll/drop-proof design, shock absorbing structure, noise reduction technology, air conditioning, unobstructed vision, and a spacious environment.
3. The modular wheel reduction system boasts reliability, long life, and easy maintenance.
4. The high-capacity, strong, versatile blade is well-suited for operations such as back filling, excavation, shaping, and other heavy duty jobs.
