Product Details:
Payment & Shipping Terms:
|
Model: | FD 10 | Rated Load Capacity: | 1000 Kg |
---|---|---|---|
Lift Height: | 3000 Mm | Mast Extended Height: | 3940 Mm |
High Light: | forklift loading truck,forklift lift truck |

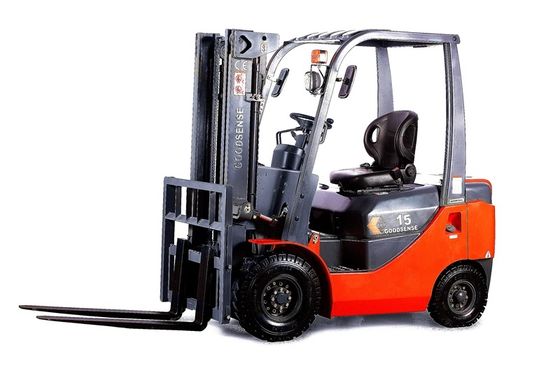

Sinomtp FD10 forklift with Rated load capacity 1000kg and ISUZU engine and CE certification
Specifications:
Item | FD10 |
Power source | Diesel |
Rated load capacity | 1000 kg |
Load centre | 500 mm |
Lift height | 3000 mm |
Fork size (L×W×T) | 920×120×35 mm |
Fork carriage tilt(F/R) | 6°/12° |
Overal Length(Length to fork face) | 2205 mm |
Overall Width | 1086 mm |
Mast Extended Height | 3940 mm |
Mast Lowered Height | 1995 mm |
Overhead Guard Height | 2040 mm |
Gradeability(Laden) | 20 % |
Front Tire | 6.50-10-10PR |
Rear Tire | 5.00-8-10PR |
Description:
Engine Brand | ISUZU |
Model | C240PKJ |
Rated output | 35.4/2500kw/r.p.m |
Rated torque | 139/1800Nm/r.p.m |
No. of cylinder | 4 |
Bore x Stroke | 86X102mm |
Displacement | 2369cc |
Advantage:
1. Specially designed solid overhead guard provides additional security for the operator.
2. Wide-view mast gives the operator an enhanced forward visibility, which adds to the efficiency and safety of operator.
3. The instruments offer an easy accesses to the working condition of the truck, thus makes handling process more efficient and safe. Supper low and non-slip make operating convenient and safe.
