|Working Device:||Standard Arm||Bucket Capacity:||0.6|
|Cabin:||FOPS||Engine Rated Power:||120kw|
|Hydraulic System:||Pilot Operation Positive Flow||Swing Speed:||12.2r/min|

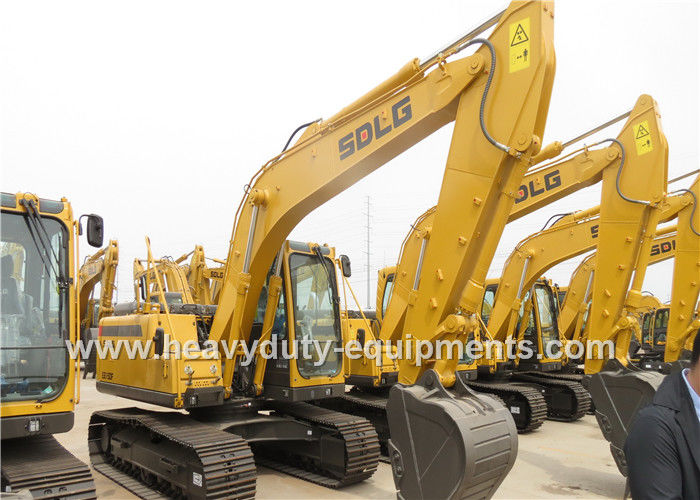

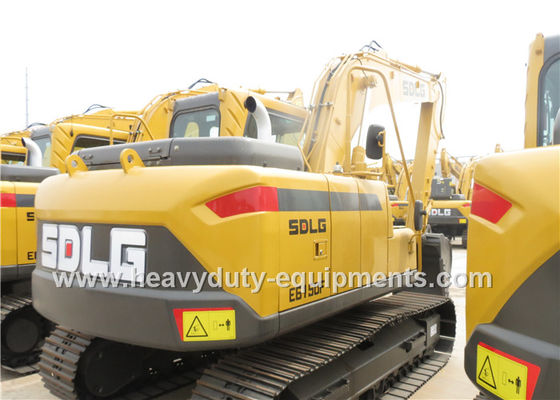

FOPS Cabin Hydraulic Crawler Excavator Dipper Arm LGW6150E 120kw Engine
|Engine||DDE BF6M2012C||Working device||Standard arm|
|Overall operating weight||13100kg||Bucket capacity||0.6|
|Max. excavation force||97.7KN||Swing speed||12.2r/min|
|Max digging radius||7770mm||Max digging depth||4700mm|
|Max digging height||5943mm||Engine rated power||120kw|
|Length of boom||4400mm||Max climbing angle||-|
|Hydraulic system||Pilot operation positive flow||Cabin||FOPS|
LGW6150E is developed by SDLG by absorbing VOLVO advanced technologies, and integrates advantages including energy saving, reliability and comfort.Thanks to its excellent maneuverability , and the application of reinforced and optimally-configured power train and hydraulic system, it is applicable for various severe working conditions.
1. The Deutz 2nd generation supercharged and inter cooled engine with electrically-controlled regulator EMR2 features strong power, proper economic and environmental performance and high reliability; besides the engine is designed with three stage filtering including pre-filtering and air filtering, effectively increasing the engine performance and service life.
2. The hydraulic system is applied with the double-pump constant power negative flow control and has the “auto-sensing operating mode” and the “single-pump/double-pump oil supply contril mode”, featuring high efficiency and enabling excellent control preformance of the complete machines.
3. The VOLVO reinforced drive axle applied enables rationally-distributed load,uniform stress, reliable performance and longer service life, and the ZF axis-fixed electro-hydraulic shifting transmission ensures reliable performance and easy and flexible operation.
4. The open engine hood is equipped for the convenience of maintenance and service, and it is designed with stream-line appearance, simple but charming.
