Product Details:
Payment & Shipping Terms:
|
Model: | SINOMTP-70BT | Turning Radius: | 3600mm |
---|---|---|---|
Load Center Distance: | 600mm | Gradeability: | 20% |
Fork: (L X W X H): | 1400x150x70mm | Wheelbase: | 2500mm |
High Light: | forklift loading truck,forklift lift truck |

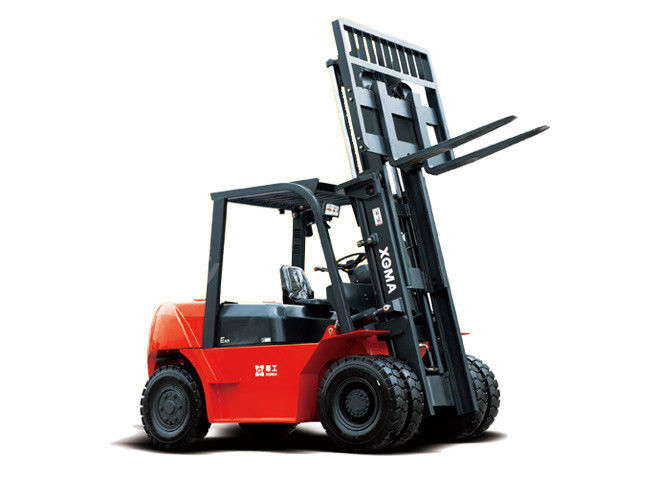

Low oil consumption forklift with improved performance equipment
Specifications:
Model | SINOMTP-70BT | Height of Overhead Guard(mm) | 2504 |
Rated lifting capacity (kg) | 7000 | Maximum Lifting Height(mm) | 3000 |
Weight (kg) | 10000 | Free Lifting Height(mm) | 170 |
Turning radius (mm) | 3600 | Minimum Ground Clearance(mm) | 166 |
Fork: L x W x H(mm) | 1400x150x70 | Track (Front/rear)(mm) | 1494/1500 |
Overall Dimensions (LxBxH) (mm) | 5193x2018x2686 | Front tyre | 4x8.25-20-14PR |
Maximum Travel Speed (km/h) | 26 | Rear tyre | 2x8.25-15-14PR |
Gradeability (%) | 20 | Engine Model | LR6105G69 |
Load Center Distance(mm) | 600 | Engine Rated Power/Speed( kw/r • p • m) | 80/2200 |
Tilt Angle of Mast (F/B) (°) | 7°/13° | Engine Max. Torque/Speed (N • m/r • p • m) | 400/1500-1600 |
Wheelbase (mm) | 2500 |
Description:
Large Torque, low oil consumption, and strong overload capacity. Adequate cross-country ability and large driving torque. Customized for the stone materials industry.
Application:
This kind of forklift used for loading, unloading and stock filing of containers as well as other packages.
Advantage:
1. Flexible internal transmission flow providing efficiency, reliable, stable and entire machine's operation conveniences. In addition, the gearbox and torque converter adopt high quality and advanced products.
2. In-built cyclone-type pre-filter provides high in-out filtration within the system.
3. High discharge design for exhaust pipe, purposely designed for engine's operating efficiency and performances.
4. It is equipped with rearview mirror and reversing warning device as well as inching control function, which improves performance of the equipment.
