Product Details:
Payment & Shipping Terms:
|
| Model: | SINOMTP-FB20S | Power Source: | Electric |
|---|---|---|---|
| Rated Load Capacity: | 2000kg | Load Centre: | 500mm |
| Fork Size (L×W×T): | 920x120x40 | Battery: | 48/560 V/Ah |
| High Light: | forklift pallet truck,forklift lift truck |
||

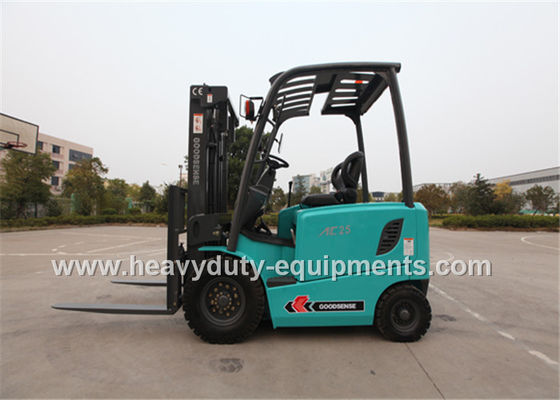

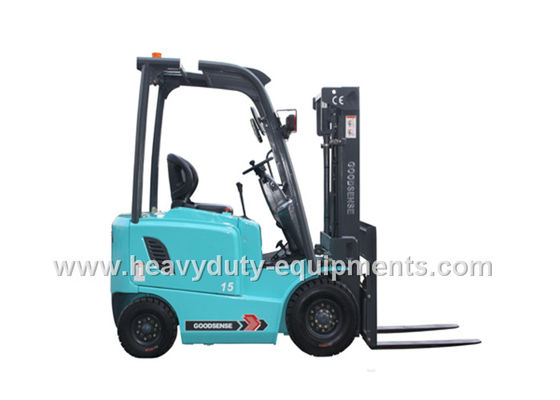

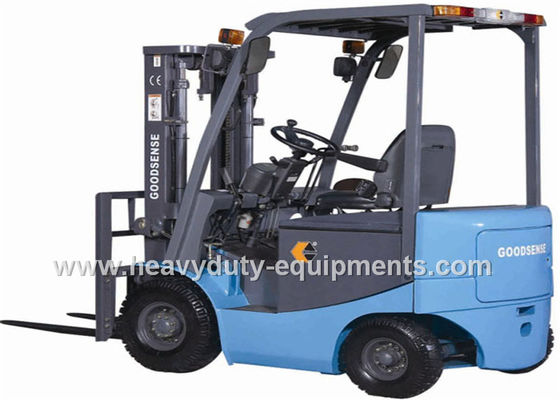

Port / Wharf 3 Wheel Forklift 130mm Free Lift With Adjustable Steering Wheel
Specification:
| Product model | SINOMTP-FB20S | Overhead Guard Height(mm) | 2055 |
| Power source | Electric | Wheelbase(mm) | 1460 |
| Rated load capacity(kg) | 2000 | Overall length(with forks)(mm) | 3630 |
| Load centre(mm) | 500 | Gradeability(Laden)(%) | 15 |
| Lift height(mm) | 3000 | Front Tire | 18x7-8 |
| Fork size (L×W×T)(mm) | 920x120x40 | Rear Tire | 16x6-8 |
| Overall Length(Length to fork face)(mm) | 2090 | Backrest height(from upper fork face)(mm) | 930 |
| Overall Width(mm) | 1100 | Free lift (mm) | 130 |
| Mast Lowered Height(mm) | 2030 | Drive motor(kw) | 4.5x2 |
| Mast Extended Height(mm) | 4010 | Lift motor(kw) | 8.6 |
| Fork carriage tilt(F/R)( °) | 5°/7° | Battery (V/Ah) | 48/560 |
Description:
High strength integral hood with thermal and sound insulation material, tile-cylinder built-in designs and large operation space greatly improves the operator’s maximum comfort.
Application:
Currently our forklift truck is widely used in logistics operation sites like port, wharf, industrial and mining enterprises, station and warehouse, construction site, log yard and much more.
Advantage:
1. Brake system: air-over-oil brakes of good reliability with brake master cylinder and brake light.
2. High strength solid steel gantry fork: Excellent capacity of resisting impact and is used in heavy duty operations.
3. The gearbox and torque converter are of reliable quality and stable performance.
4. Steering axle: adopt full-hydraulic steering gear with transverse cylinder, which helps ensure flexible steering and high reliability
