Product Details:
Payment & Shipping Terms:
|
| Model: | SINOMTP-FD15 | Power Source: | Diesel |
|---|---|---|---|
| Rated Load Capacity: | 1500kg | Load Centre: | 500mm |
| Fork Carriage Tilt(F/R): | 6°/12° | Gradeability(Laden): | 20% |
| High Light: | forklift pallet truck,forklift lift truck |
||

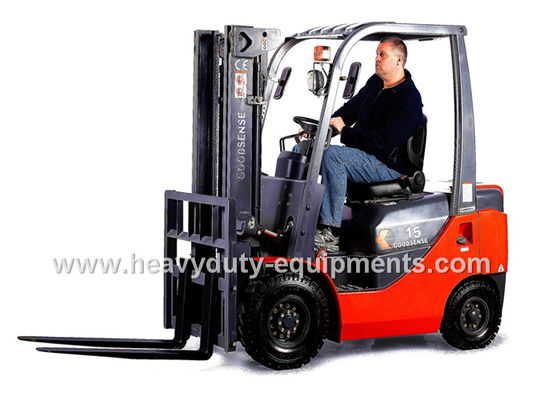

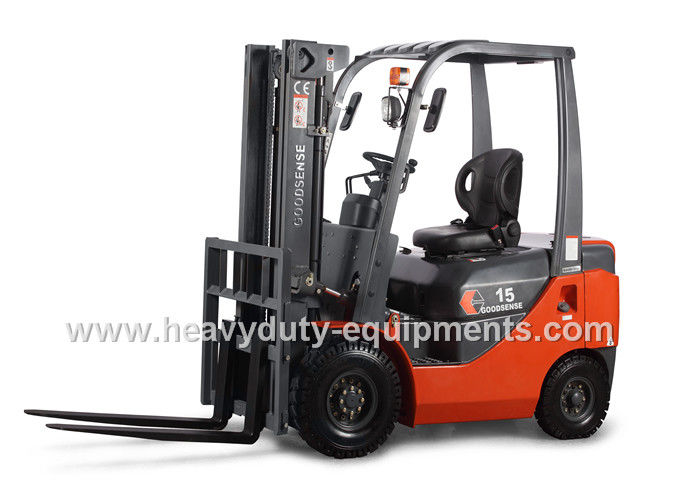

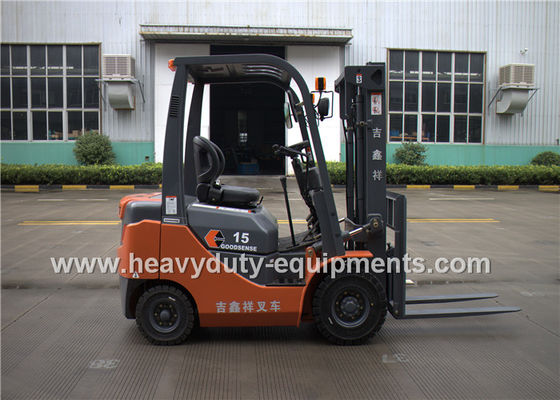

Sinomtp FD15 forklift with XICHAI NC485BPG-508 engine and CE certificate
Specification:
| Item | FD15 |
| Power source | Diesel |
| Rated load capacity | 1500 kg |
| Load center | 500 mm |
| Lift height | 3000 mm |
| Fork size (L×W×T) | 920×120×35 mm |
| Fork carriage tilt(F/R) | 6°/12° |
| Overal Length(Length to fork face) | 2285 mm |
| Overall Width | 1086 mm |
| Mast Extended Height | 3940 mm |
| Mast Lowered Height | 1995 mm |
| Overhead Guard Height | 2040 mm |
| Gradeability(Laden) | 20 % |
| Front Tire | 6.50-10-10PR |
| Rear Tire | 5.00-8-10PR |
Description:
| Engine Brand | XINCHAI |
| Model | NB485BPG-7 |
| Rated output | 30/2600 |
| Rated torque | 131/1700-1900 |
| No. of cylinder | 4 |
| Bore x Stroke | 85X100 |
| Displacement | 2270cc |
Advantage:
1. Specially designed solid overhead guard provides additional security for the operator.
2. Wide-view mast gives the operator an enhanced forward visibility, which adds to the efficiency and safety of operator.
3. Designed according to ergonomic principles, makes operation much comfortable and also relieves the fatigue.
The powerful engine ensures SINOTRUK truck’s high handling performance and offers an intrinsical safety and efficient operation.
