Product Details:
Payment & Shipping Terms:
|
| Model: | SINOMTP-FD40 | Power Source: | Diesel |
|---|---|---|---|
| Rated Load Capacity: | 4000kg | Fork Size (L×W×T): | 1070×150×50mm |
| Engine Brand Tilt(F/R): | LUOTUO | Displacement: | 4578cc |
| High Light: | forklift pallet truck,forklift lift truck |
||

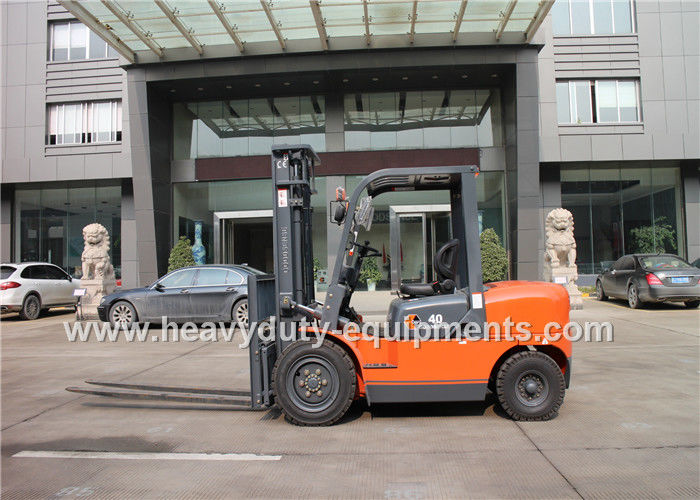

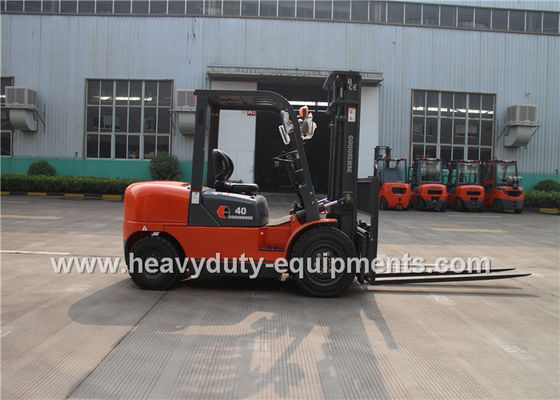

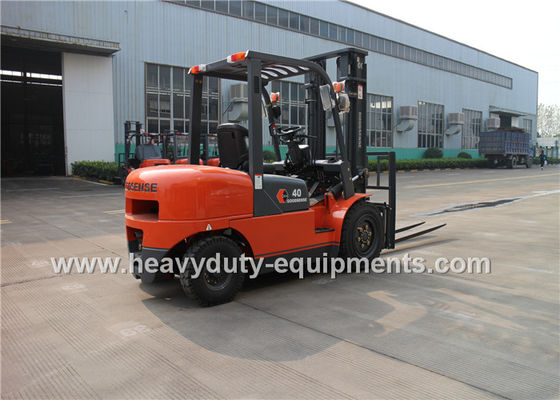

Sinomtp FD40 diesel forklift with Rated load capacity 4000kg and LUOTUO engine
Specification:
| Type of model | FD40 |
| Power source | Diesel |
| Rated load capacity | 4000kg |
| Load centre | 500mm |
| Lift height | 3000mm |
| Fork size (L×W×T) | 1070×150×50mm |
| Fork carriage tilt(F/R) | 6°/12° |
| Overall Length(Length to face of fork) | 3220mm |
| Overall Width | 1480mm |
| Mast Lowered Height | 2330mm |
| Mast Extended Height | 4250mm |
| Overhead Guard Height | 2320mm |
| Gradeability(Laden) | 20% |
| Front Tire | 300-15-18PR |
| Rear Tire | 7.00-12-12PR |
Description:
| Brand | LUOTUO |
| Model | LR4B3-G89X6-U2 |
| Rated output | 57/2200kw/r.p.m |
| Rated torque | 284-297/1400-1600Nm/r.p.m |
| No. of cylinder | 4 |
| Bore x Stroke | 108X125mm |
| Displacement | 4578cc |
Advantage:
1. The instruments offer an easy accesses to the working condition of the truck, thus makes handling process more efficient and safe.
2. Supper low and non-slip make operating convenient and safe.
3. Designed according to ergonomic principles, makes operation much comfortable and also relieves the fatigue.
Wide-view mast gives the operator an enhanced forward visibility, which adds to the efficiency and safety of operator.
