Product Details:
Payment & Shipping Terms:
|
| Overall Operating Weight: | 21700kg | Bucket: | 1.2 M³ ( Light Material Bucket) |
|---|---|---|---|
| Dimension: | 9700*2990*2940mm | Bucket Capacity: | 1m3 |
| Max. Excavation Force: | 147.1KN | Max Digging Depth: | 6730mm |
| Max Digging Height: | 6650mm | Traveling Speed: | 3.2/5.5km/h |
| High Light: | hydraulic shovel excavator,crawler hydraulic excavator |
||

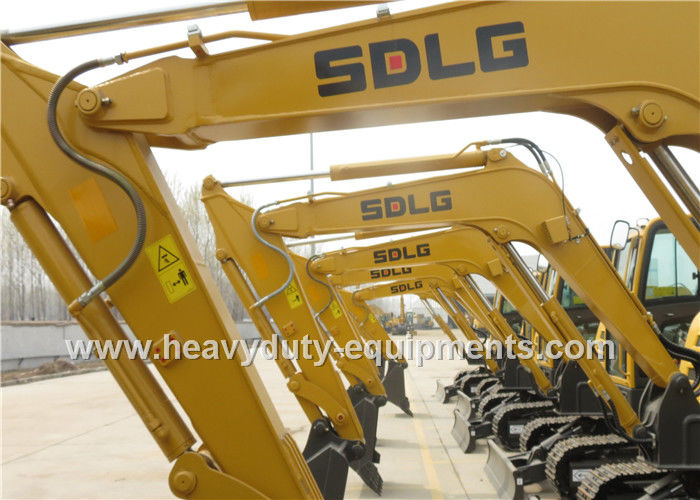

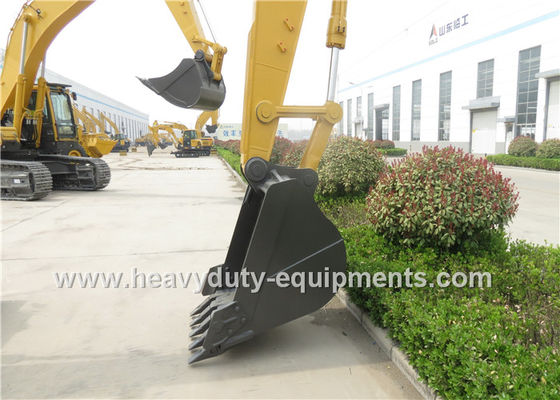

SDLG 22tons Crawler Excavator with 1.2m3 Bucket VOLVO technology
| Engine | DDE BF6M2012 | Working device | Standard arm |
| Operating weight | 21700kg | Bucket capacity |
1.2 m³ ( LM bucket) |
| Max. excavation force | 147.1KN | Swing speed | 11.6r/min |
| Traveling speed | 3.2/5.5km/h | Dimension | 9700*2990*2940mm |
| Max digging radius | 9940mm | Max digging depth | 6730mm |
| Max digging height | 6650mm | Engine rated power | 120kw |
| Length of boom | 5700mm | Max climbing angle | 35° |
| Hydraulic system | Pilot operation positive flow | Cabin |
Standard cab (with A/C) |
Description:
The LG6225E is the upgraded and updated product developed bu SDLG based on the advanced VOLVO technology. With high-strength chassis, enhanced reinforced implement, perfectly matched power and hydraulic systems, this product is compatible with variety of harsh operating conditions.
Advantage:
The hydraulic system adopts double-pump constant power and negative flow control, which has modes of “self-sensing working mode” and “single/double-pump oil supply controllable”.
Application:
Excavator is a multipurpose machinery of earthwork construction, mainly for digging and loading.
