Product Details:
Payment & Shipping Terms:
|
| Engine: | Cummins | Transmission System: | 4forward Shift 2 Reverse Shift |
|---|---|---|---|
| Axle: | Sinomtp Axle | Cabin: | Standard |
| Dimension (mm): | 6890×2430×3070mm | Rated Power: | 92kw |
| Bucket Capacity: | Standard 1.7m3 | ||
| High Light: | Wheel Loader equipment,loader construction equipment |
||

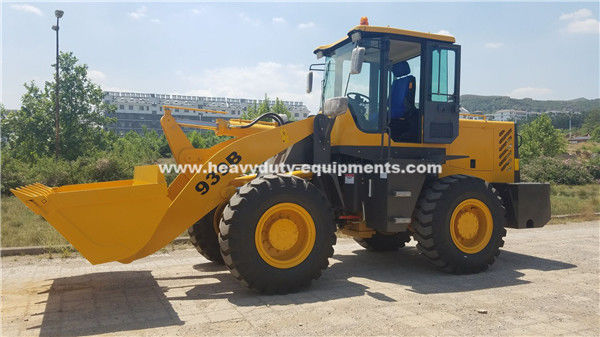

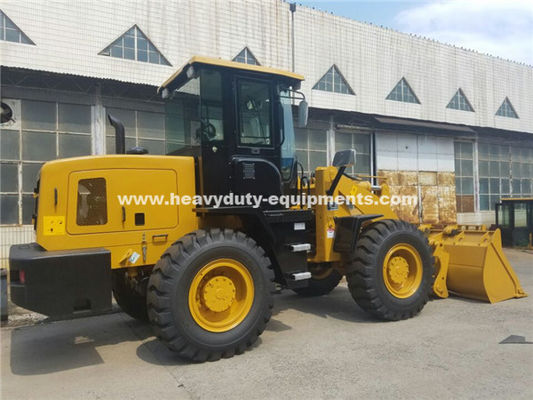

SINOMTP ZL30 WHEEL LOADER 3 TONS WITH CUMMINS ENGINE AND STANDARD BUCKET
SPECIFICATION:
| Performance | 1 | rated loading | 3000kg |
| 2 | overall weight | 9600kg | |
| 3 | rated bucket capacity | 1.7 | |
| 4 | maximum tractive force | 97KN | |
| 5 | maximum breakout force | 127KN | |
| 6 | maximum grade ability | 30℃ | |
| 7 | maximum dump height | 3100mm | |
| 8 | maximum dump reach | 1006mm | |
| 9 | overall dimension (L×W×H) | 6890×2430×3070mm | |
| 10 | minimum turning radius | 5097mm | |
| Engine | 11 | model | Deutz WP6G125E22 |
| 12 | type | lnline water cooled, four stroke | |
| 13 | No. of cylinder-bore/stroke | 6—108×125mm | |
| 14 | rated power | 92kw | |
| 15 | maximum torque | 500N.m | |
| 16 | min fuel-consume ratio | ≤210g/kw.h | |
| Transmission system | 17 | torque converter | YJ315—x |
| 18 | gearbox mode | Power shift normally engaged straight gear | |
| 19 | gear shift | 4forward shift 2 reverse shift | |
| 20 | maximum speed | 40km/h | |
| Drive axles | 21 | main reducing mode | Bevel gear grade lreduction |
| 22 | decelerating mode | Bevel gear grade lreduction | |
| 23 | wheel base (mm) | 2660mm | |
| 24 | wheel tread | 1800mm | |
| 25 | ground clearance | 400mm |
DESCRIPTION:
