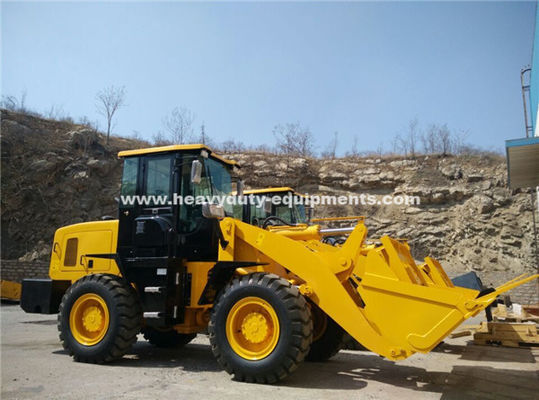

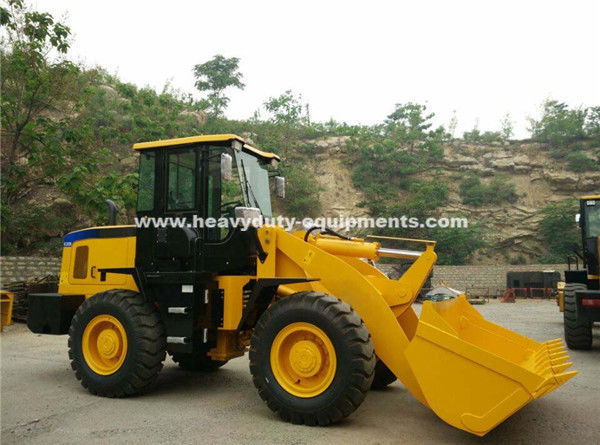

Sinomtp Lg936 Wheeled Front End Loader 3000kg With 3100mm Maximum Dump Height

China Sinomtp Lg936 Wheeled Front End Loader 3000kg With 3100mm Maximum Dump Height supplier

Large Image :  Sinomtp Lg936 Wheeled Front End Loader 3000kg With 3100mm Maximum Dump Height

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC/BV
Model Number: LG936

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: NUDE
Delivery Time: 35 days after payment
Supply Ability: 100 units per month
Detailed Product Description
BUCKET CAPACITY: 1.7M3 Maximum Dump Height: 3100mm
ENGINE: WEICHAI DEUTZ Rated Loading: 3000kg
Maximum Torque: 500N.m Min Fuel-consume Ratio: ≤210g/kw.h

SINOMTP LG936 WHEEL FRONT END LOADER 3000KG WITH 3100mm Maximum Dump Height



SPECIFICATION:





Performance 1 rated loading 3000kg
  2 overall weight 9600kg
  3 rated bucket capacity 1.7
  4 maximum tractive force 97KN
  5 maximum breakout force 127KN
  6 maximum grade ability 30℃
  7 maximum dump height 3100mm
  8 maximum dump reach 1006mm
  9 overall dimension (L×W×H) 6890×2430×3070mm
  10 minimum turning radius 5097mm
Engine 11 model Deutz WP6G125E22
  12 type lnline water cooled, four stroke
  13 No. of cylinder-bore/stroke 6—108×125mm
  14 rated power 92kw
  15 maximum torque 500N.m
  16 min fuel-consume ratio ≤210g/kw.h
Transmission system 17 torque converter YJ315—x
  18 gearbox mode Power shift normally engaged straight gear
  19 gear shift 4forward shift 2 reverse shift
  20 maximum speed 40km/h



DESCRIPTION:



Sinomtp Lg936 Wheeled Front End Loader 3000kg With 3100mm Maximum Dump HeightSinomtp Lg936 Wheeled Front End Loader 3000kg With 3100mm Maximum Dump Height
