3T Small Front Loader With 1.8m³ Bucket Capaity Can Be Optional As Deuta Or Weichai Engine

China 3T Small Front Loader With 1.8m³ Bucket Capaity Can Be Optional As Deuta Or Weichai Engine supplier

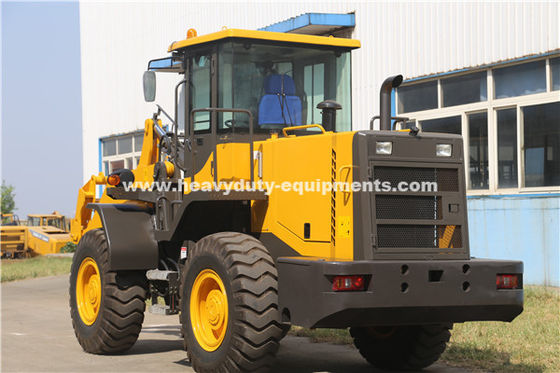

Large Image :  3T Small Front Loader With 1.8m³ Bucket Capaity Can Be Optional As Deuta Or Weichai Engine

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC/BV
Model Number: ZL30

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: NUDE
Delivery Time: 35 days after payment
Supply Ability: 100 units per month
Detailed Product Description
Torque Converter: YJ315 Minimum Turning Radius: 5097mm
Gear Shift: 4forward Shift 2 Reverse Shift Service Brake: Air Assist Disc Brake On 4 Wheels
Boom Lifting Time: 4.83s Fuel Tank Capacity: 156L

3T wheel loader with 1.8m³ bucket capaity can be optional as Deuta or Weichai engine of SINOMTP brand



SPECIFICATION:



Performance 1 rated loading 3000kg
  2 overall weight 9800kg
  3 rated bucket capacity 1.8m3
  4 maximum tractive force 97KN
  5 maximum breakout force 127KN
  6 maximum grade ability 30℃
  7 maximum dump height 3100
  8 maximum dump reach 1006mm
  9 overall dimension (L×W×H) 6890×2430×3070mm
  10 minimum turning radius 5097mm
Engine 11 model Deutz WP6G125E22
  12 type lnline water cooled, four stroke
  13 No. of cylinder-bore/stroke 6—108×125mm
  14 rated power 92kw
  15 maximum torque 500N.m
  16 min fuel-consume ratio ≤210g/kw.h
Transmission system 17 torque converter YJ315
  18 gearbox mode Power shift normally engaged straight gear
  19 gear shift 4forward shift 2 reverse shift
  20 maximum speed

40km/h
