ZL30 Wheel Loader With 9800kg Overall Weight And 6890x2430x3070mm Overll Size From SINOMTP

China ZL30 Wheel Loader With 9800kg Overall Weight And 6890x2430x3070mm Overll Size From SINOMTP supplier

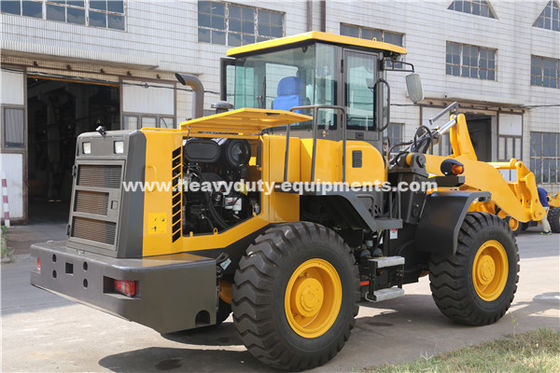

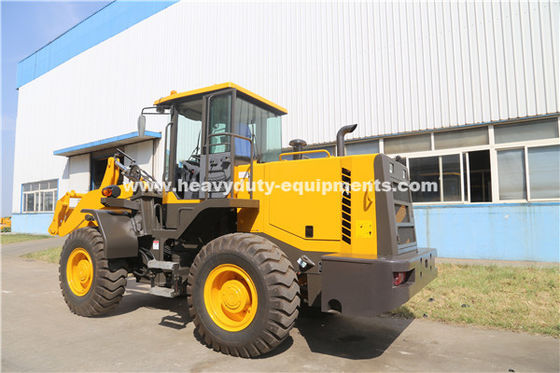

Large Image :  ZL30 Wheel Loader With 9800kg Overall Weight And 6890x2430x3070mm Overll Size From SINOMTP

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC/BV
Model Number: ZL30

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: NUDE
Delivery Time: 35 days after payment
Supply Ability: 100 units per month
Detailed Product Description
Rated Loading: 3000kg Rated Bucket Capacity: 1.8m3
Maximum Breakout Force: 127KN Minimum Turning Radius: 5097mm
Boom Lifting Time: 4.83s Maximum Dump Height: 3100

ZL30 wheel loader with 9800kg overall weight and 6890x2430x3070mm overll size from SINOMTP



SPECIFICATION:



Engine 11 model Deutz WP6G125E22
  12 type lnline water cooled, four stroke
  13 No. of cylinder-bore/stroke 6—108×125mm
  14 rated power 92kw
  15 maximum torque 500N.m
  16 min fuel-consume ratio ≤210g/kw.h
Transmission system 17 torque converter YJ315
  18 gearbox mode Power shift normally engaged straight gear
  19 gear shift 4forward shift 2 reverse shift
  20 maximum speed 40km/h
Drive axles 21 main reducing mode Bevel gear grade lreduction
  22 decelerating mode Bevel gear grade lreduction
  23 wheel base (mm) 2660mm
  24 wheel tread 1800mm
  25 ground clearance 400mm
Hydraulic system 26 system working pressure 16.5MPa
  27 boom lifting time 4.83s
  28 total time 9.15s±0.5s
  29 fuel tank capacity 156L
  30 function of leveling automatically yes
