Product Details:
Payment & Shipping Terms:
|
| Model: | SDLG | Engine: | Weichai Engine |
|---|---|---|---|
| Transmission: | Fixed Shaft Gearbox | Cycle Time (s): | ≤9 |
| Min Steering Radius (mm): | 6070 | Max Breakout Force (KN): | ≥92 |
| High Light: | Wheel Loader equipment,loader construction equipment |
||

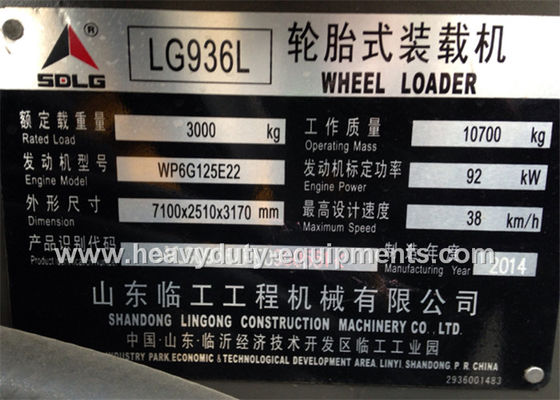

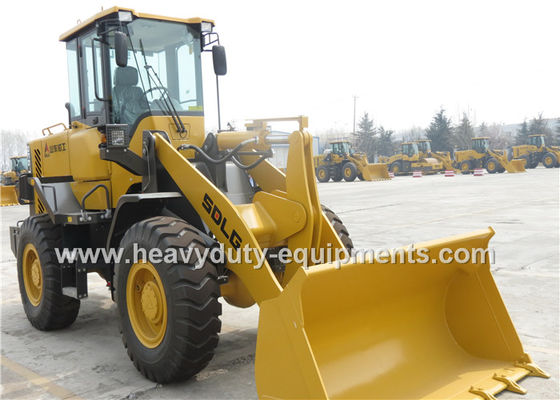

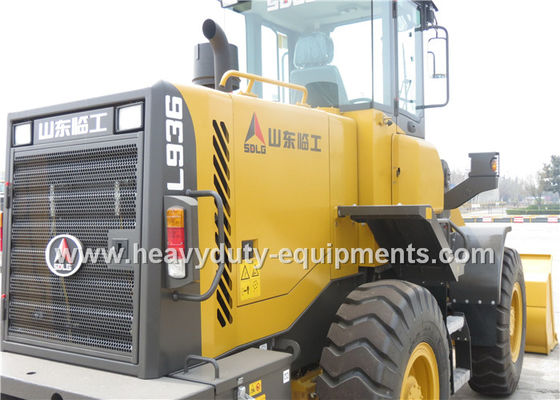

LG936L Wheel Loader SDLG Brand With Air Condition 1.8m3 Bucket 10700kg Operating Weight
Specification:
| Item | LG936 L | Engine | Cummins |
| Transmission | Fixed shaft gearbox | Bucket Capacity ( m3) | 1.6 |
| Axle | Heavy duty | Rated Load (kg) | 3000 |
| Hydraulic System | Pilot Control | Max Dumping Height (mm) | 3278 |
| Working Arm | Standard | Cycle Time (s) | ≤9 |
| Control Valve | 3 Valve | Min Steering Radius (mm) | 6070 |
| Brake System | Dual Brake Petal | Max Breakout Force (KN) | ≥92 |
| Cab | Standard | Dimension (L*W*H) (mm) | 7266*2510*3087 |
| Cooling/Heating System | Air Conditioner | Operating Weight (kg) | 10700 |
| Quick Coupler | Yes | Attachment | Optional |
Description:
LG936L is a loader for loading and unloading loose materials, with high reliability and multiple purposes, and is widely used in farms, small mine plant, timber plant and towns construction and etc.
Advantages:
1. SDLG 5T planetary transmission case is used, with two front gear positions and one rear gear position. It is light and easy to operate, with long service life; Single-stage four-element twin-turbo hydraulic torque converter is provided, with large torque ratio and high transmission efficiency; Reinforced drive axle is configured, with large bearing capacity and high reliability.
2. It adopts front and rear reinforced frames that have passed 200,000 times of fatigue enhancement tests, with strong bearing capacity, reasonable entire-machine load distribution and good stability.
3. Bucket is made of protruding type cutting board. The bottom antifriction plate is thickened, with little cutting resistance, high coefficient
of fullness and high reliability.

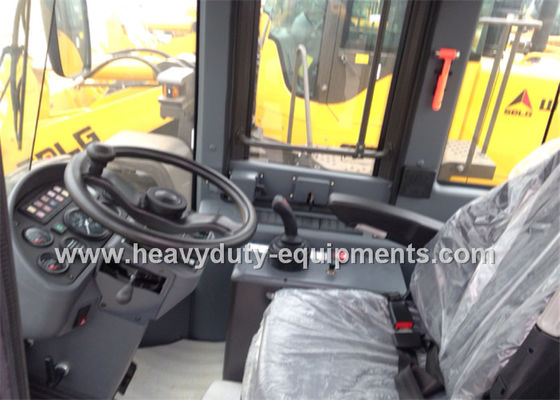

4. The self-developed digitized stepping dashboard of SDLG is adopted, which ensures high human-machine interaction; the centralized control is adopted for the electric apparatus of entire machine, which ensures convenient inspection and maintenance and high reliability of electrical apparatus element.
