Product Details:
Payment & Shipping Terms:
|
| Model: | SDLG | Engine: | Weichai DEUTZ |
|---|---|---|---|
| Transmission: | SDLG Transmission | Axle: | SDLG Axle |
| Hydraulic System: | Pilot Control | Cooling/Heating System: | Air Conditioner |
| High Light: | Wheel Loader equipment,heavy equipment loader |
||

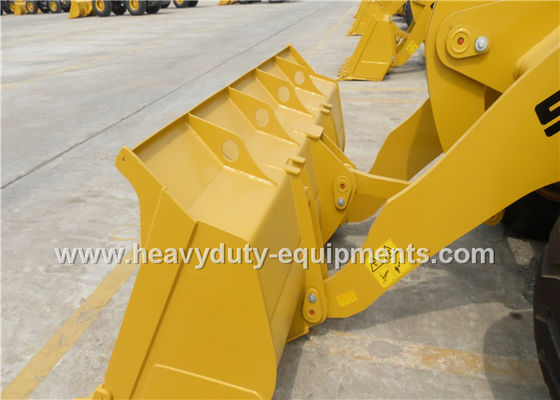

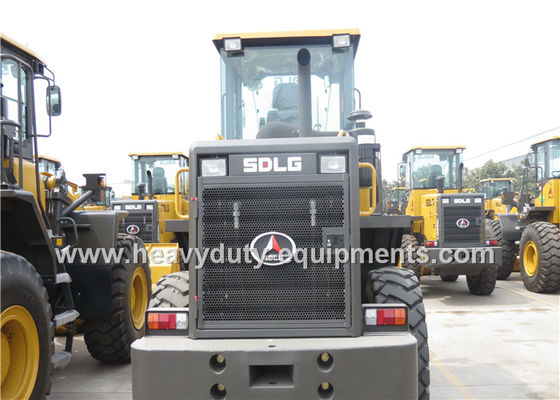

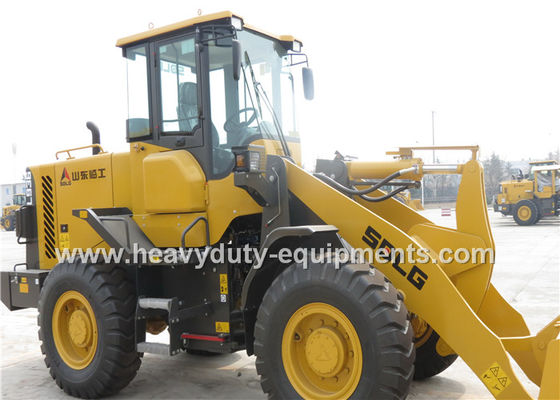

Wheel loader SDLG LG936L 3tons Loading Capacity With 1.8m3 Standard Bucket SDLG Axle
Specification:
| Item | LG936 L | Engine | Weichai DEUTZ |
| Transmission | Fixed shaft gearbox | Bucket Capacity ( m3) | 1.8 |
| Axle | SDLG Axle | Rated Load (kg) | 3000 |
| Hydraulic System | Pilot Control | Max Dumping Height (mm) | 2950 |
| Working Arm | Standard | Cycle Time (s) | ≤9 |
| Control Valve | 3 Valve | Min Steering Radius (mm) | 5381 |
| Brake System | Dual Brake Petal | Max Breakout Force (KN) | ≥96 |
| Cab | Standard | Dimension (L*W*H) (mm) | 7100*2510*3170 |
| Cooling/Heating System | Air Conditioner | Operating Weight (kg) | 10700 |
| Quick Coupler | Yes | Attachment | Optional |
Description:
LG936L is a loader for loading and unloading loose materials, with high reliability and multiple purposes, and is widely used in farms, small mine plant, timber plant and towns construction and etc.
Advantages:
1. It is equipped with the Weichai DEUTZ turbocharged engine meeting the requirements of China II emission standard, with strong power and high reliability; Dachai DEUTZ Engine is alternative.
2. SDLG 5T planetary transmission case is used, with two front gear positions and one rear gear position. It is light and easy to operate, with long service life; Single-stage four-element twin-turbo hydraulic torque converter is provided, with large torque ratio and high transmission efficiency; Reinforced drive axle is configured, with large bearing capacity and high reliability.
3. Load-sensing full hydraulic steering system and pilot-control working device hydraulic system are used, with high operating efficiency and are light and easy to operate; Hydraulic pipeline is double sealed, with high reliability.
4. It adopts front and rear reinforced frames that have passed 200,000 times of fatigue enhancement tests, with strong bearing capacity, reasonable entire-machine load distribution and good stability.
